Strapping Machine BPPS Series
CB automatic strapping machine BPPS series integrate strapping unit with conveyors, solving common packaging pain points: High energy consumption, frequent maintenance, strap failures on high-speed line and limited box compatibility.

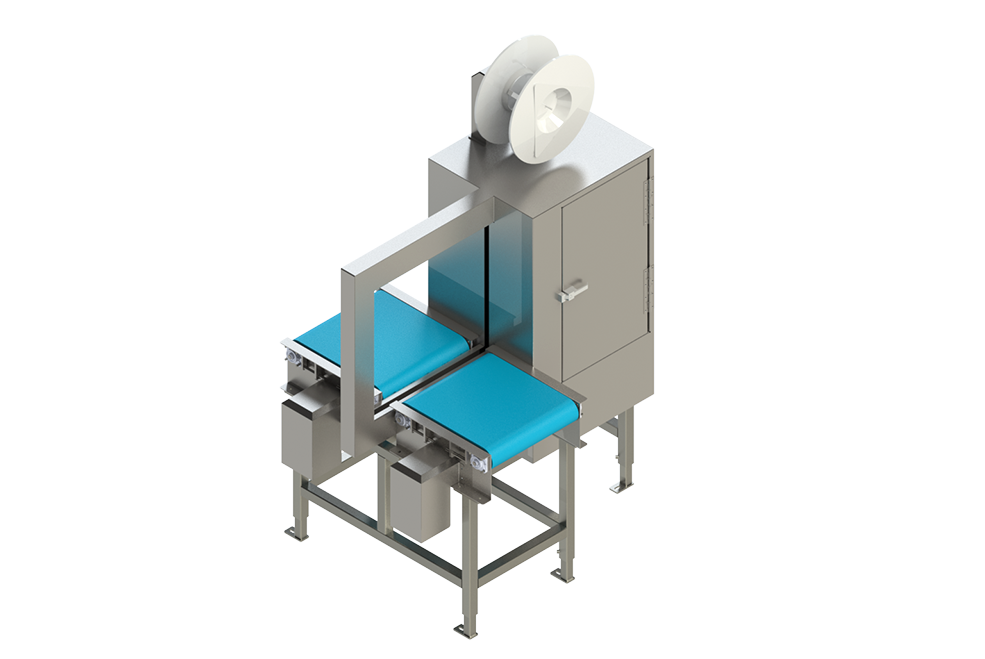

Two kinds of production modes available: Single unit for double parallel strapping on one box. Dual sequence units for continuous high-speed packing. Equipped with photoelectric positioning sensor, tool-free quick strap change and dual-stage tension mechanism for tight strapping without box deformation. Built-in fault self-diagnosis, automatic strap ejection, one-click refeeding and fast warm-up.
Capable of long term continuous operation and integration with all automated conveying lines. Widely used for carton and foam insulated box in seafood, food, cold chain, agricultural and light consumer product industries.
-
+Frame
-
+Conveyor
-
+Strapping Arch Frame
-
+Strap Coil Reel
-
+Strapping Machine Main Unit
Product Features

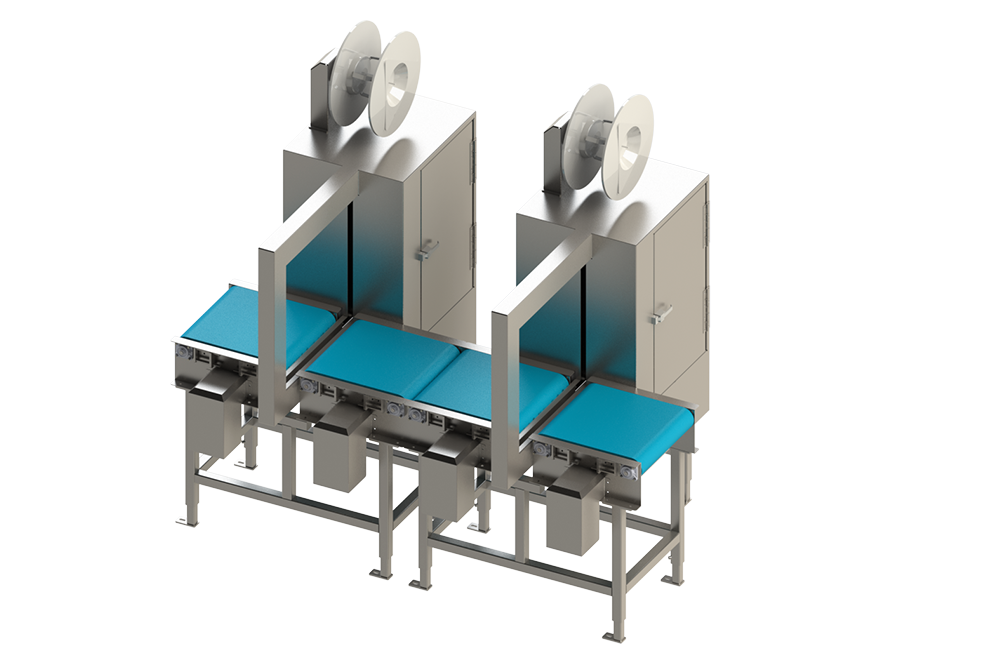

Dual-unit layout for doubled capacity output; two independent unit serve as mutual backups. Arch height adjustable ±20mm, auto-adaptive width limit, compatible with cartons, foam insulated boxes & plastic boxes. Photoelectric position detecting for fully automated lines. Auto strap ejection upon failure; one-click full refeeding to reduce manual downtime. 25-second ultra-fast warm-up to maximize effective production time. Matched with BPCH straight conveyors with synchronized signal & speed for easy line integration.
Product Advantages

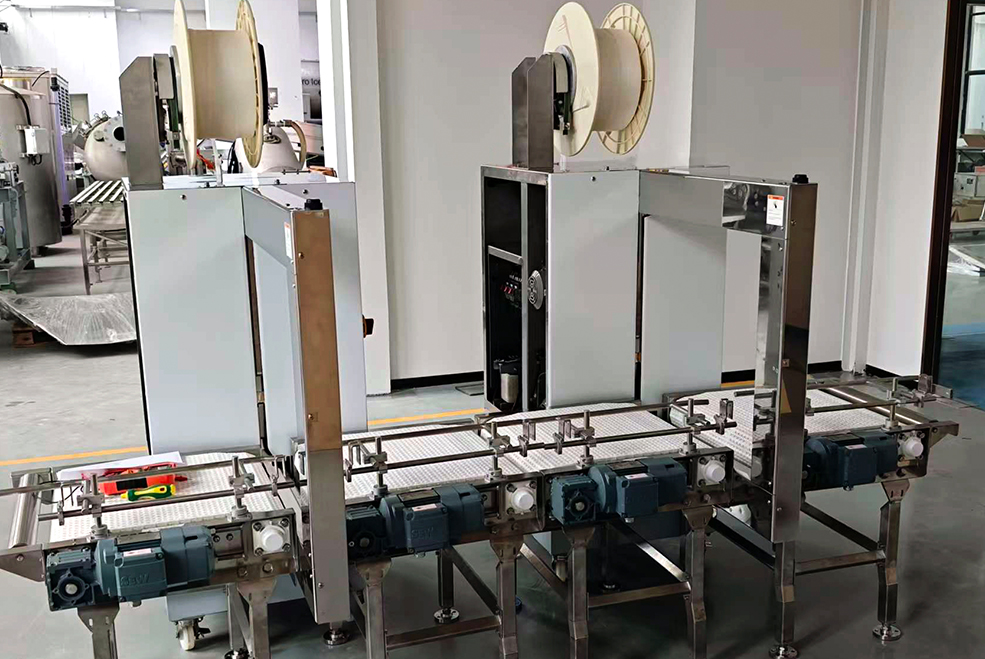

Dual working modes (single unit double strapping / dual sequence units) for flexible output, suitable for small-batch orders and high-volume mass production.. Two strapping units back each other up, allowing maintenance without line shutdown to maximize production efficiency.. Adjustable arch height & width to fit boxes for multi-industry packaging specifications.. Auto strap ejection, one-click refeeding and self-diagnosis sharply reduce production losses caused by manual intervention.. Match standard conveying equipment with signal synchronization, quick connection to all types of automated lines..
Product Specification
BPPS-008S
BPPS-010D
| Power Supply (V/Phase/Hz) | 380V/3Ph/50Hz |
| Rated Power (kW) | 0.95 |
| Conveyor Model | BPCH-055W50 |
| Velocity (m/min) | 15 |
| Rated Power (kW) | 0.12 X 2 |
| Rated Capacity (Boxes/min) | 8 |
| Rated Total Power (kW) | 1.19 |
| Max Size of the Box*1 (mm) | 680 x 500 |
| Power Supply (V/Phase/Hz) | 380V/3Ph/50Hz |
| Rated Power (kW) | 0.95 |
| Conveyor Model | BPCH-055W50 |
| Velocity (m/min) | 15 |
| Rated Power (kW) | 0.12 X 2 |
| Rated Capacity (Boxes/min) | 10 |
| Rated Total Power (kW) | 2.38 |
| Max Size of the Box*1 (mm) | 680 x 500 |
Remarks：
* Standard arch height: 485mm (adjustable ±20mm); arch width: 700mm.
选您的型号

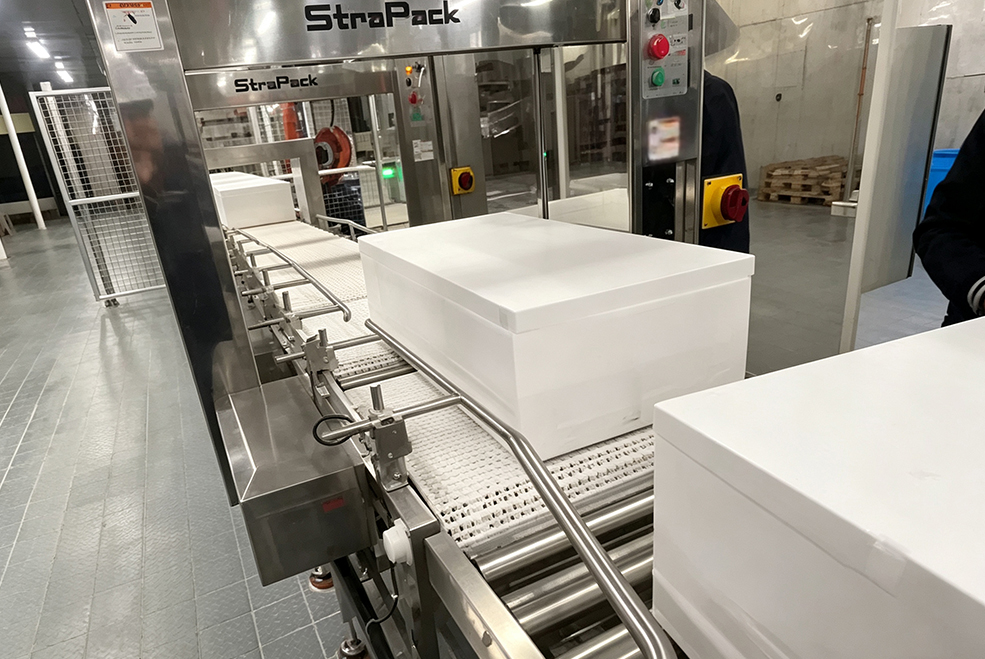

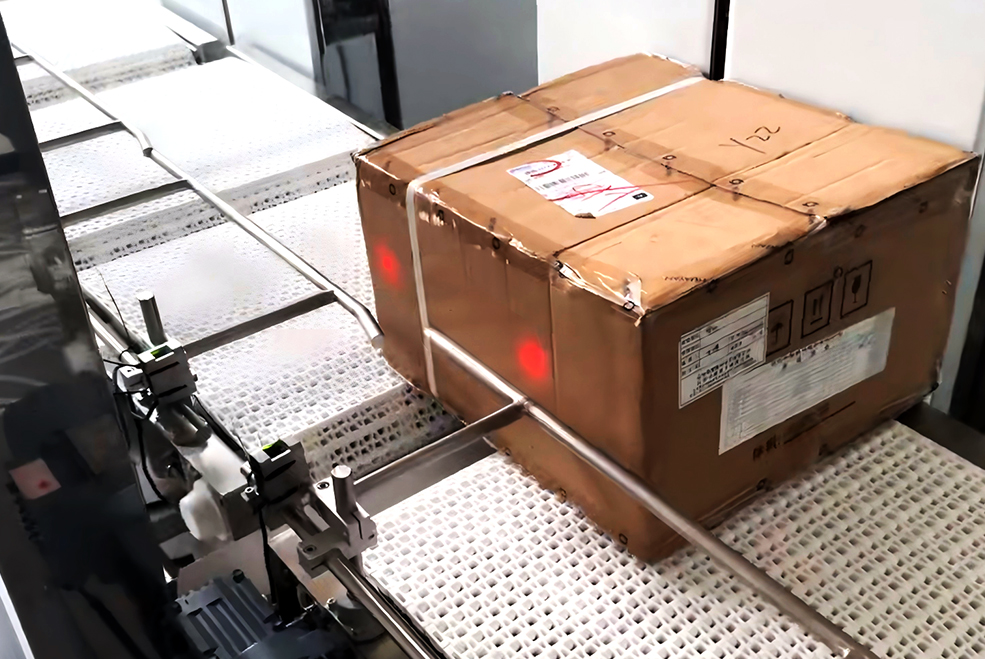

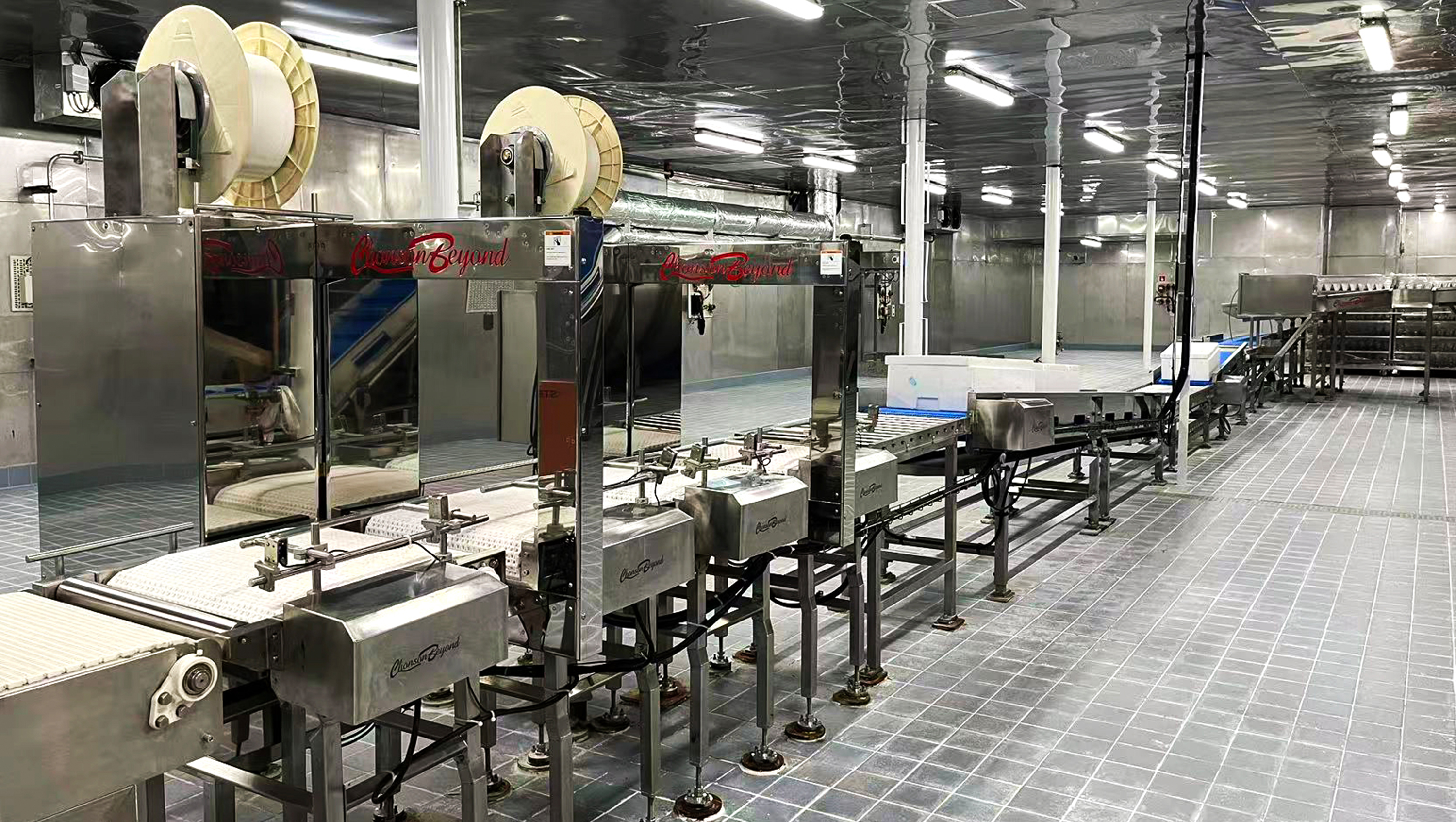

Application Photos
