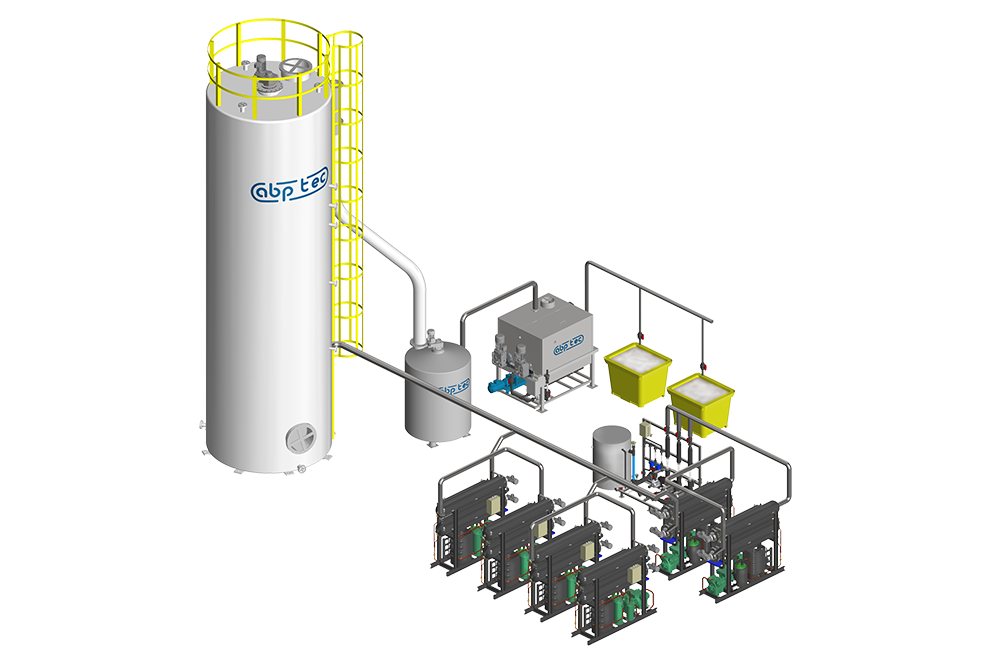

Land-Based Slurry Ice System
On-land processing plants, particularly seafood and poultry facilities, require rapid pre-chilling for raw materials and finished goods during production, steady low-temperature conditions for storage and transit. The land based slurry ice system provides variable-concentration slurry ice for different scenarios: 30–40% concentration for rapid product pre-chilling; 50–70% slurry ice and pure ice crystals for cold preservation in storage and transit. It achieves full-process temperature control, lowers labor costs of traditional ice usage, optimizes plant workflows, upgrades processing technologies and ensures long-term stable product quality.
-
+Pump Station ASSP
-
+Horizontal Mixing Tank ASMH-H
-
+Vertical Mixing Tank ASML-V
-
+Ice Crystal Storage ASIS
-
+Slurry Ice unit
Product Features
Adopts brine to produce slurry ice the Slurry Ice Unit. Storage tank constructed from food-grade resin with polyurethane insulation. Modular equipment design enables easy installation and flexible layout, reducing equipment layout restrictions. Slurry ice can be pre-produced and stored in the Ice Crystal Storage ASIS. On demand, the ice crystals can be extracted and mixed with water to prepare variable-concentration slurry ice for production. Pipeline & pumping delivery of slurry ice of various concentrations to all ice consumption points within the plant. Integrated control realize fully automatic system operation. Easy to operate and maintain.

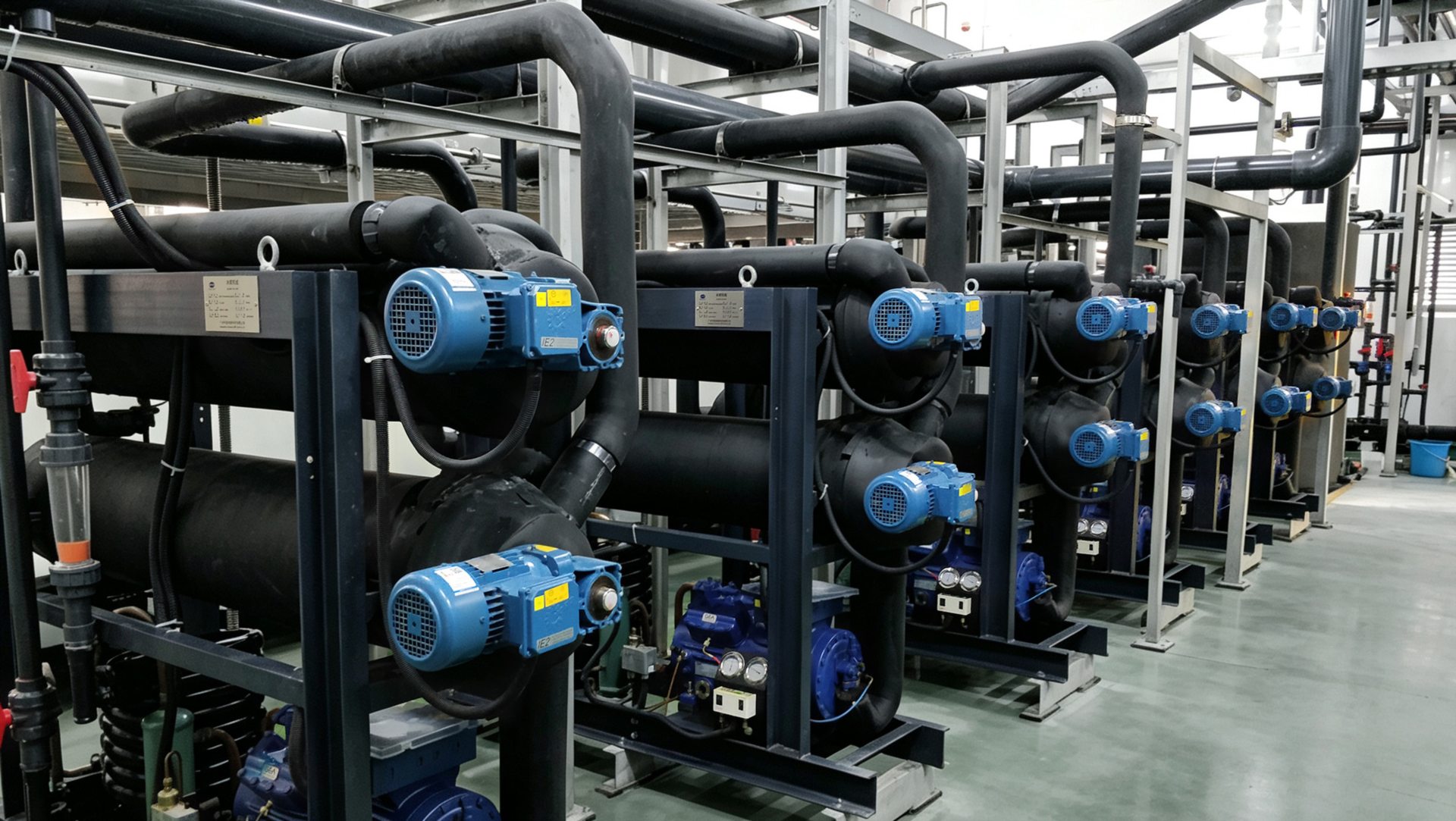

Product Advantages
The system pumps slurry ice via pipelines to reduce labor requirements. Vertical tank design saves installation footprint. Simple system structure supporting modular unit grouping. User-friendly HMI. Fewer wearing parts for high reliability and durability. Supports off-peak night-time ice production to cut operating costs.
选您的型号
Product Specification:
-
* Effective ice crystal storage capacity: 8–50 ton.
* Pure ice output: 4.5–10 ton/h.
选您的型号

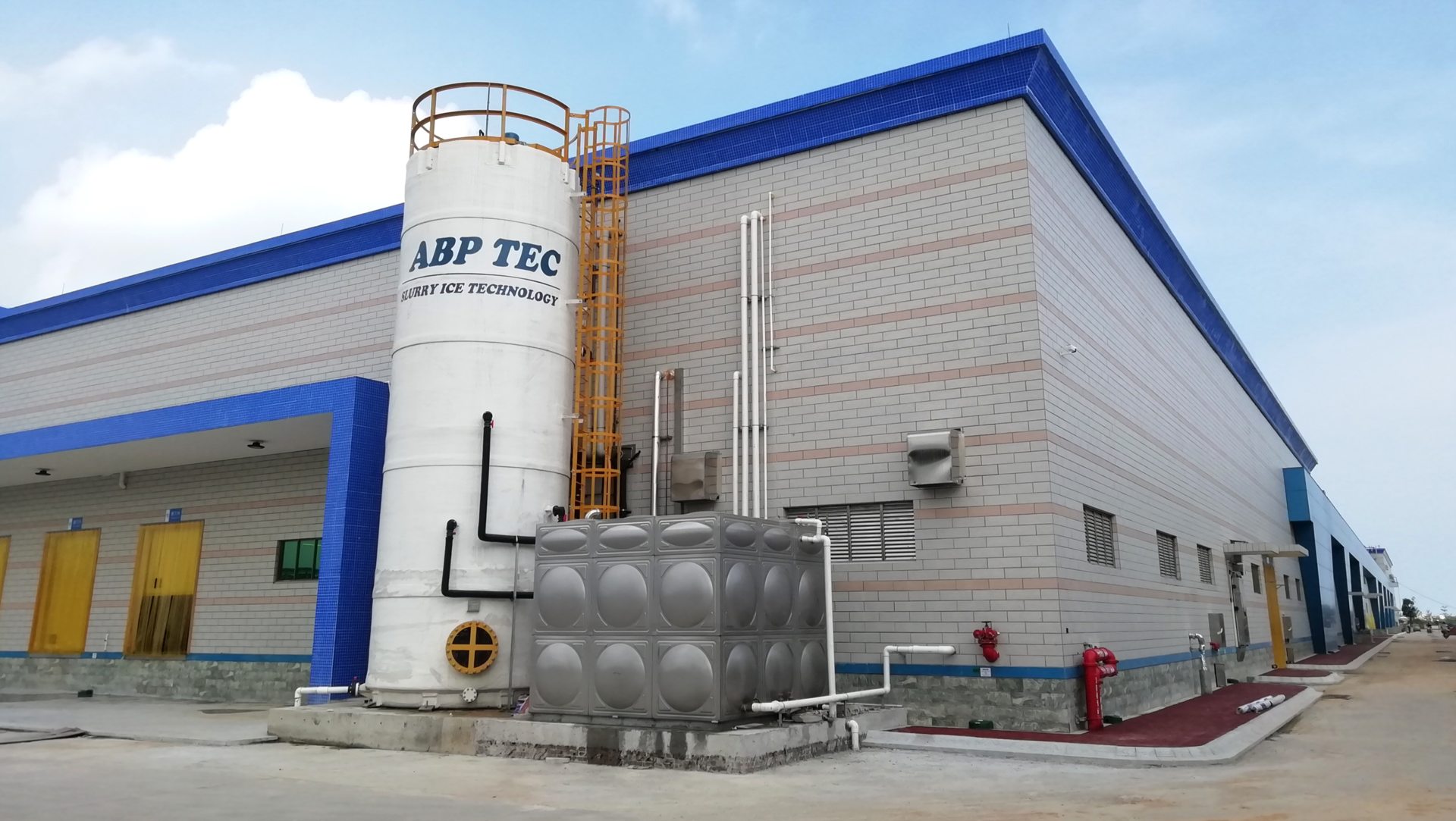

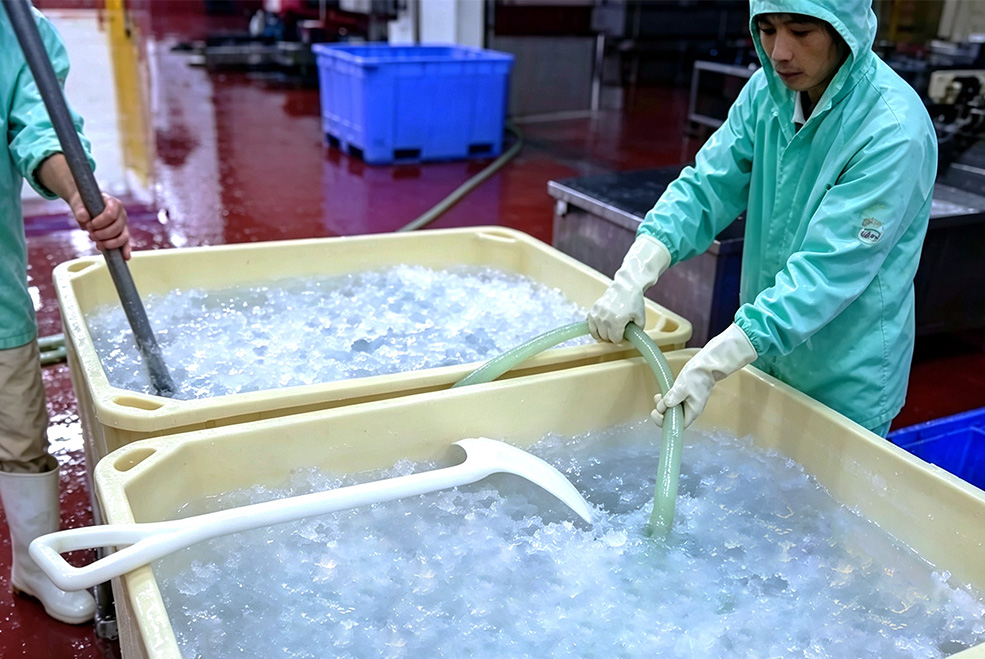

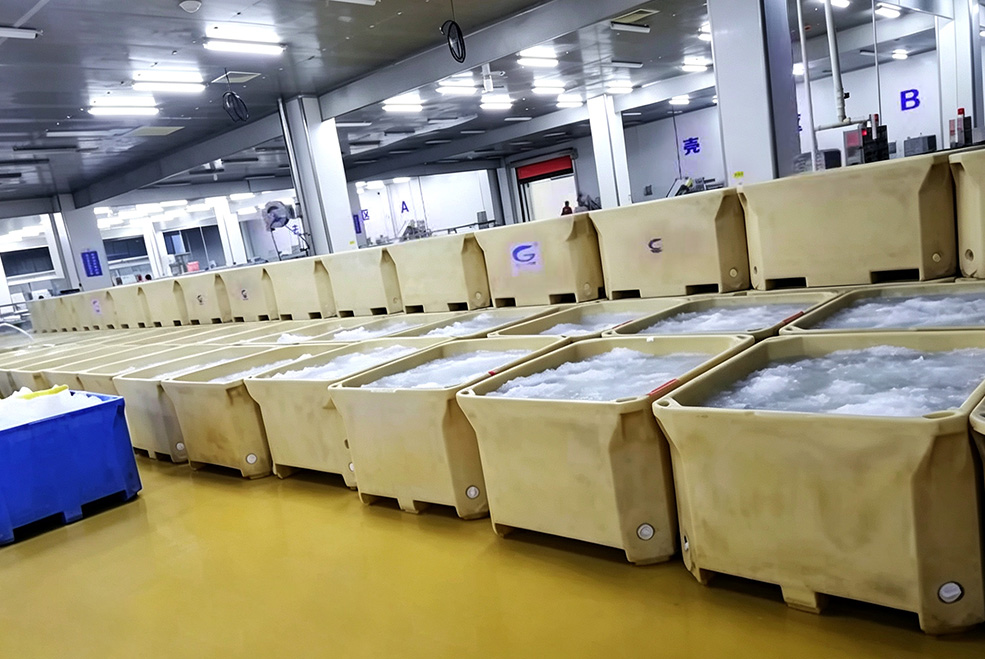

Application Photos
Application
