Marine ULT Refrigeration Unit
CB has years of expertise in ultra-low temperature refrigeration technology, has developed marine semi-hermetic two-stage screw compressor marine refrigeration units. As a leading provider of marine refrigeration systems, our highly integrated design has secured a leading position in the high-end marine refrigeration market.

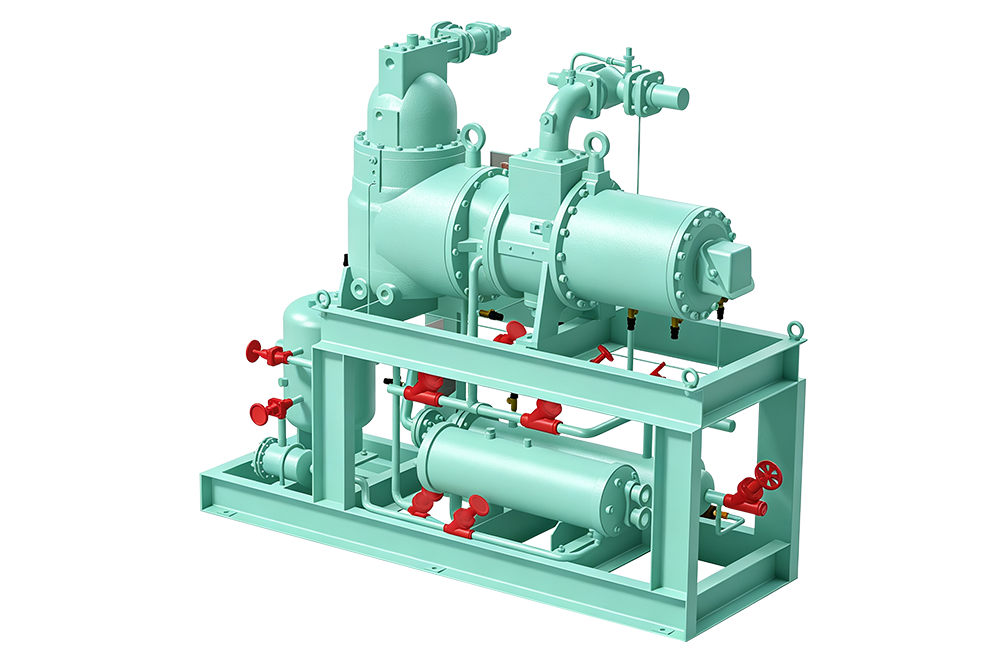

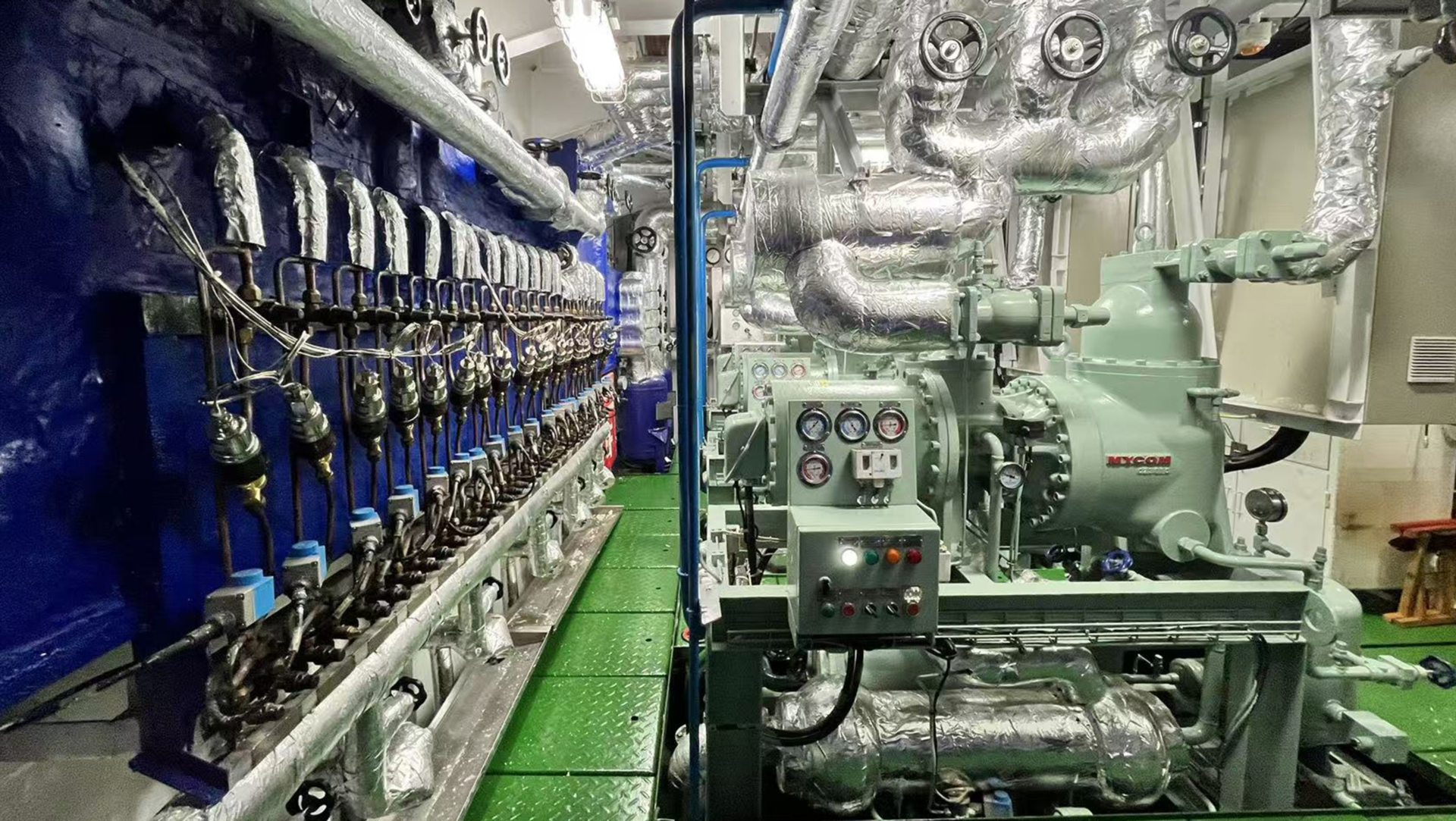

The unit utilizes Mayekawa semi-hermetic screw compressor, with an internal oil separator and suction filter. Two-stage compression significantly improves energy efficiency under ultra-low temperature operating conditions. The unit is specifically optimized for extreme sea conditions, such as high-salt corrosion and severe vessel pitch and roll, and with a compact footprint and quick installation. Capable of stable operation in ultra-low temperature conditions, it has been widely used in tuna longline fishing vessels with shelf quick-freezers and ultra-low temperature tube heat exchangers, demonstrating its excellent system integration and deep-sea operation technology.
-

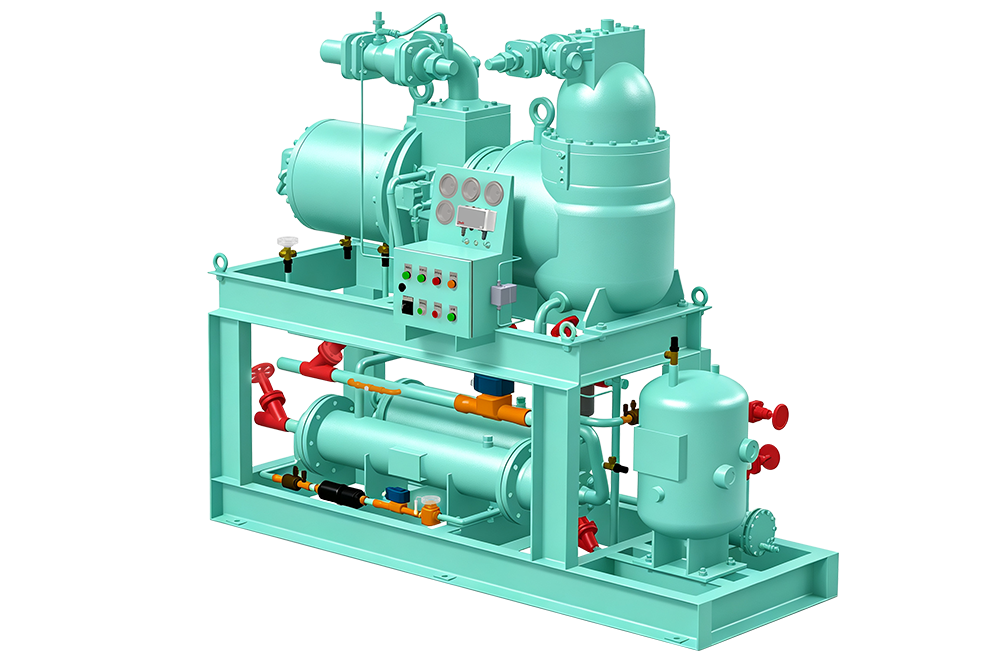

+Control cabinet
-
+Seawater oil cooler
-
+Economizer
-
+Oil receiver
-
+Semi-hermetic screw compressor
Product Features
The rotor features a high-precision asymmetrical tooth design, utilizing highly reliable slide valve and load solenoid valves to achieve 50%/100% energy regulation, flexibly handling light-load start-up and full-load cooling conditions. Integrated design of a semi-hermetic motor, oil separator, and intake filter, achieving minimizing structure. High-precision rolling bearings are used, pump-free adaptive oil supply with differential pressure. An external independent oil tank effectively buffers the dynamic balance of the system's oil volume, providing a stable oil supply even in harsh sea conditions. Motor cooling can be configured with either water cooling or refrigerant cooling, offering two independent design options as needed. Simplified operation and maintenance reduces reliance on manual labor and the risk of miss-operation; data is directly transmitted to the control room, enabling efficient and transparent vessel refrigeration management. Meet marine classification and standards.
Product Advantages
Semi-hermetic compressor: Highly integrated structure, lightweight unit, and seal-free design reduce leakage risk; Single-unit two-stage compression: Significantly improved energy efficiency in ultra-low temperature conditions, compact structure; Oil pump-free differential pressure adaptive oil supply saves oil pump operating energy and simplifies structure; Intelligent control and maintenance: Fully automated control system minimizes reliance on highly skilled crew experience, reducing manual maintenance costs; Minimalist mechanical architecture: Significantly streamlined wear-prone friction components, giving the entire unit absolute mechanical reliability in environments with strong vibration and high salt spray.
Product Specification
| Power Supply (V/Phase/Hz) | 400V / 3Ph / 50Hz |
| Capacity（-60/32℃）(kW) | 14.4 |
| Refrigerant | R507a |
| Motor Power (kW) | 27 |
| Dimensions (L×W×H) mm | 1800 x 768 x 1270 |
| Weight (Approx.) kg | 1200 |
| Power Supply (V/Phase/Hz) | 400V / 3Ph/50Hz |
| Capacity（-60/32℃）(kW) | 23.9 |
| Refrigerant | R507a |
| Motor Power (kW) | 37 |
| Dimensions (L×W×H) mm | 2000 x 868 x 1370 |
| Weight (Approx.) kg | 1800 |
Note: Multiple parallel units can be designed.
