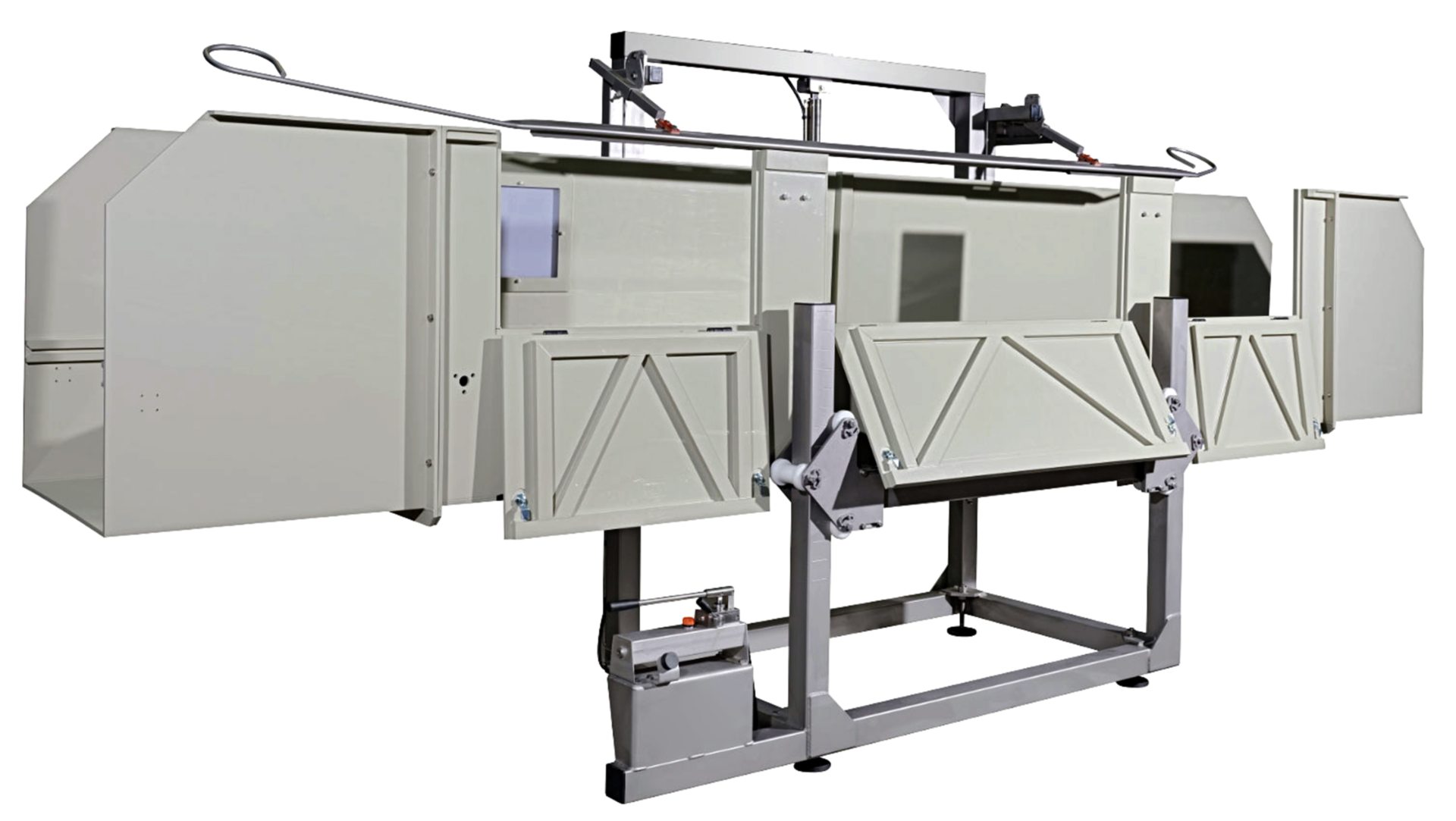

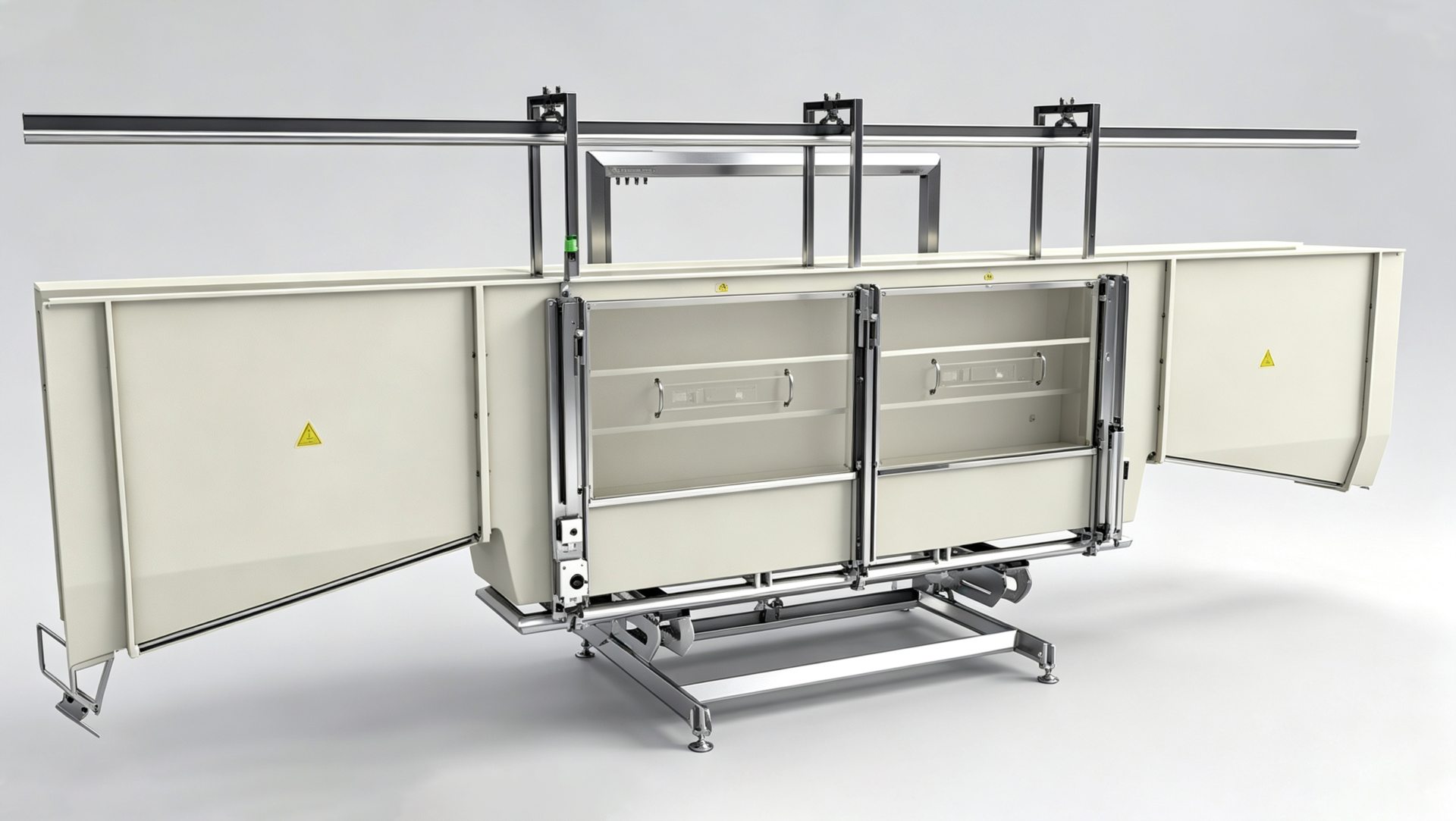

Water Stunner BPFE-032

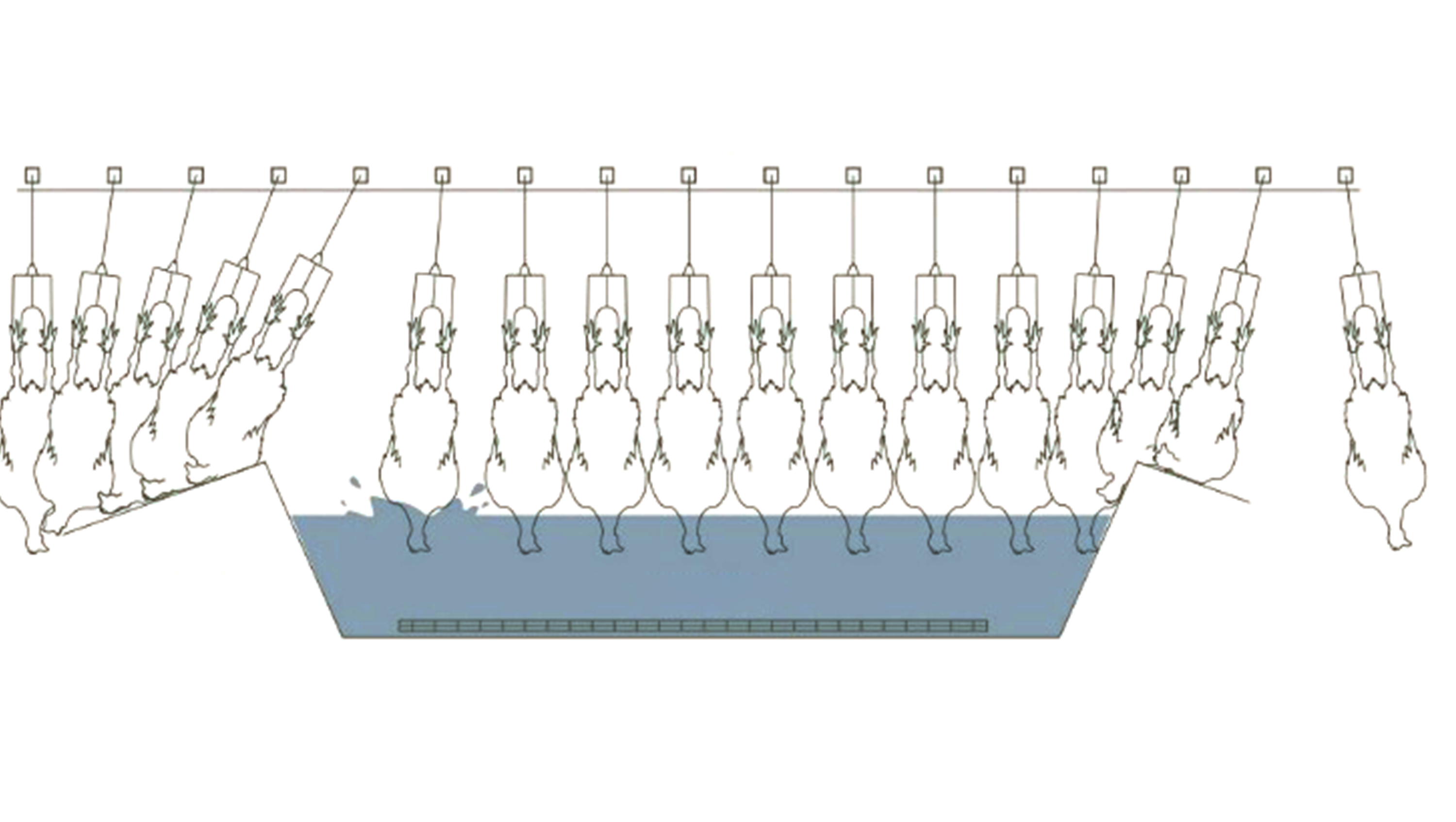

The heads of live poultry are submerged in an electrified water bath to stun the birds as electric current flows through their brains. Electric connectivity is established between the earthed conductive bars and the conductive bars fitted inside the water bath. By optimally setting the current, voltage and resistance, the system can quickly stun live poultry into an unconscious state.
The water bath high-frequency electrical stunner handles broilers and turkeys within a weight range of 300 g to 25 kg. The electric stunning system can be supplied with different effective stunning lengths to suit diverse production capacities.
Product Features
An inclined inlet guide plate guides live poultry smoothly into the stunning bath. The stunning bath dimensioned to suit poultry of different sizes for electric stunning. Easy height adjustment and convenient machine cleaning. Safety doors allow full observation of the stunning effect. The electrodes fitted in the water bath are detachable for effortless cleaning.
Product Advantages
Stable dynamic voltage enables high-quality finished products. Over-range current alarm (overcurrent / undercurrent). Multiple voltage and frequency adjustment modes for optimal control of stunning effect. Machine height is adjustable to adapt to varying sizes of poultry.
技术参数
Product Specification:
| Line speed range: 1,800 bph ~ 18,000 bph | For broilers at ≤100 Hz: stunning current 100 mA |
| Minimum stunning length: 0.9 m | For broilers at 200 Hz ~ 400 Hz: stunning current 150 mA |
| Maximum stunning length: 6.6 m | For broilers at 400 Hz ~ 1,500 Hz: stunning current 200 mA |
选您的型号
Application Photos
Application
