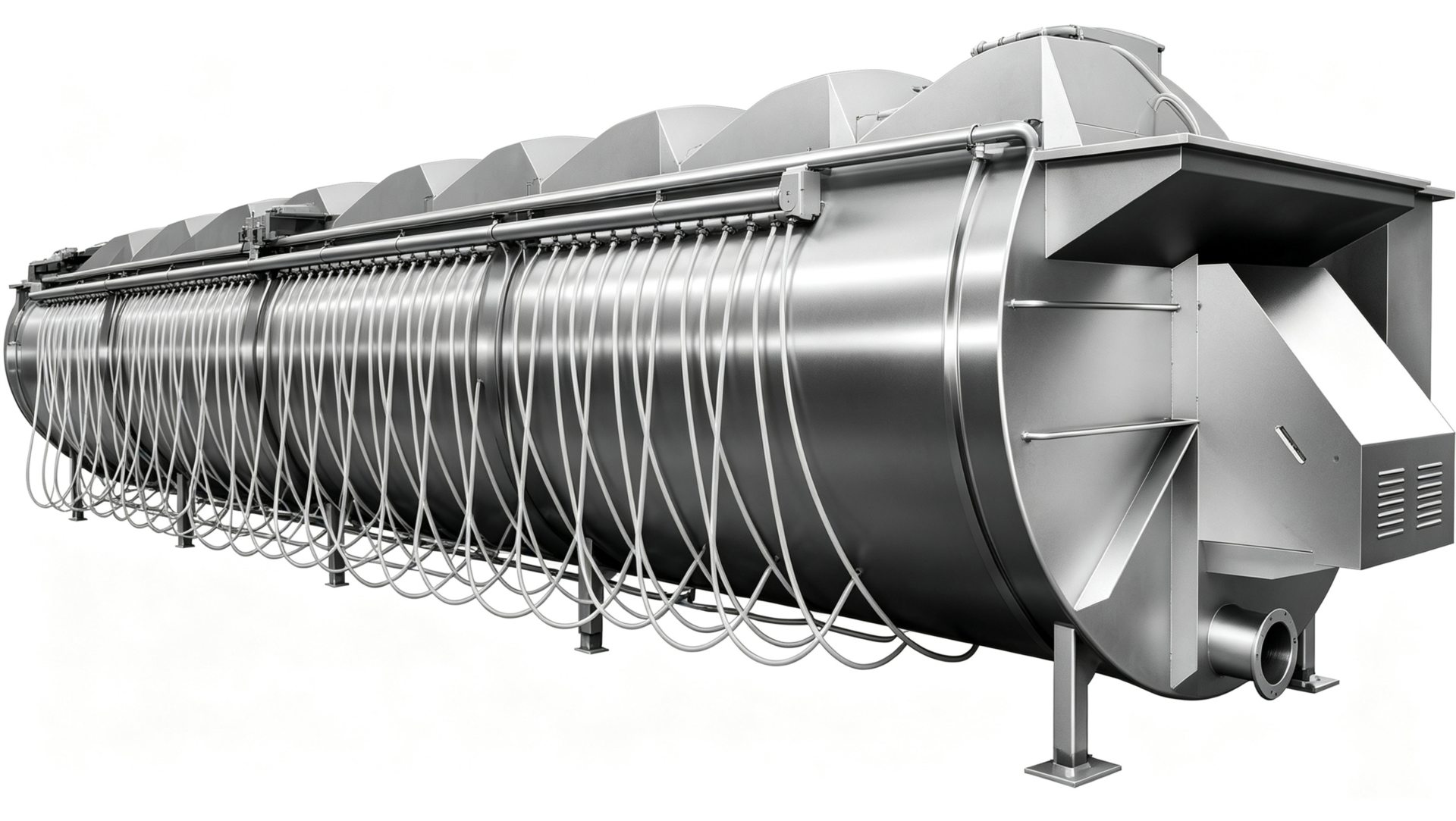

Spiral Chiller BPCW-H
The spiral chiller is equipped with an air agitation system to eliminate temperature stratification of carcasses and improve heat exchange efficiency. Featuring a unique counter-current heat exchange design and intelligent variable-frequency propulsion system, the equipment moves and thoroughly tumbles poultry carcasses forward inside the pre-chilling tank, enabling uniform ice-water bathing for every poultry carcass.
Single-section or multi-section cascaded units are available to accommodate processing capacities of 1,000 bph to 13,500 bph. Fabricated entirely from SUS304 stainless steel, the equipment is corrosion-resistant, easy to sanitize and fully complies with food hygiene requirements.
Product Features
Scientific counter-current propulsion maintains the optimal temperature differential. High-pressure aeration agitates and tumbles carcasses to remove residual surface blood. Regulated water absorption complies with standards and keeps meat tender and succulent. Smooth-edged spiral blades avoid damage to poultry skin and flesh. Modular multi-section cascading allows flexible capacity configuration. Optional energy-saving design minimizes external heat infiltration.
Product Advantages
Meat stays plump and elastic for superior market appearance. Aeration and tumbling flush deep-seated contaminants. Moisture content controlled in full compliance with regulations. Robust construction, durable and easy to maintain. Modular cascading design enables seamless connection between units.
技术参数
Product Specification:
| Screw diameter: 1500 mm ~ 3000 mm | Cooling duration: 30 min ~ 90 min |
| Screw length: 3 m ~ 12 m | Final temperature: 4℃ ±1℃ |
| Processing capacity: 1,000 bph ~ 13,500 bph | Moisture content: 4.5% ~ 5% (European standard); 6% ~ 8% (Chinese standard) |
选您的型号

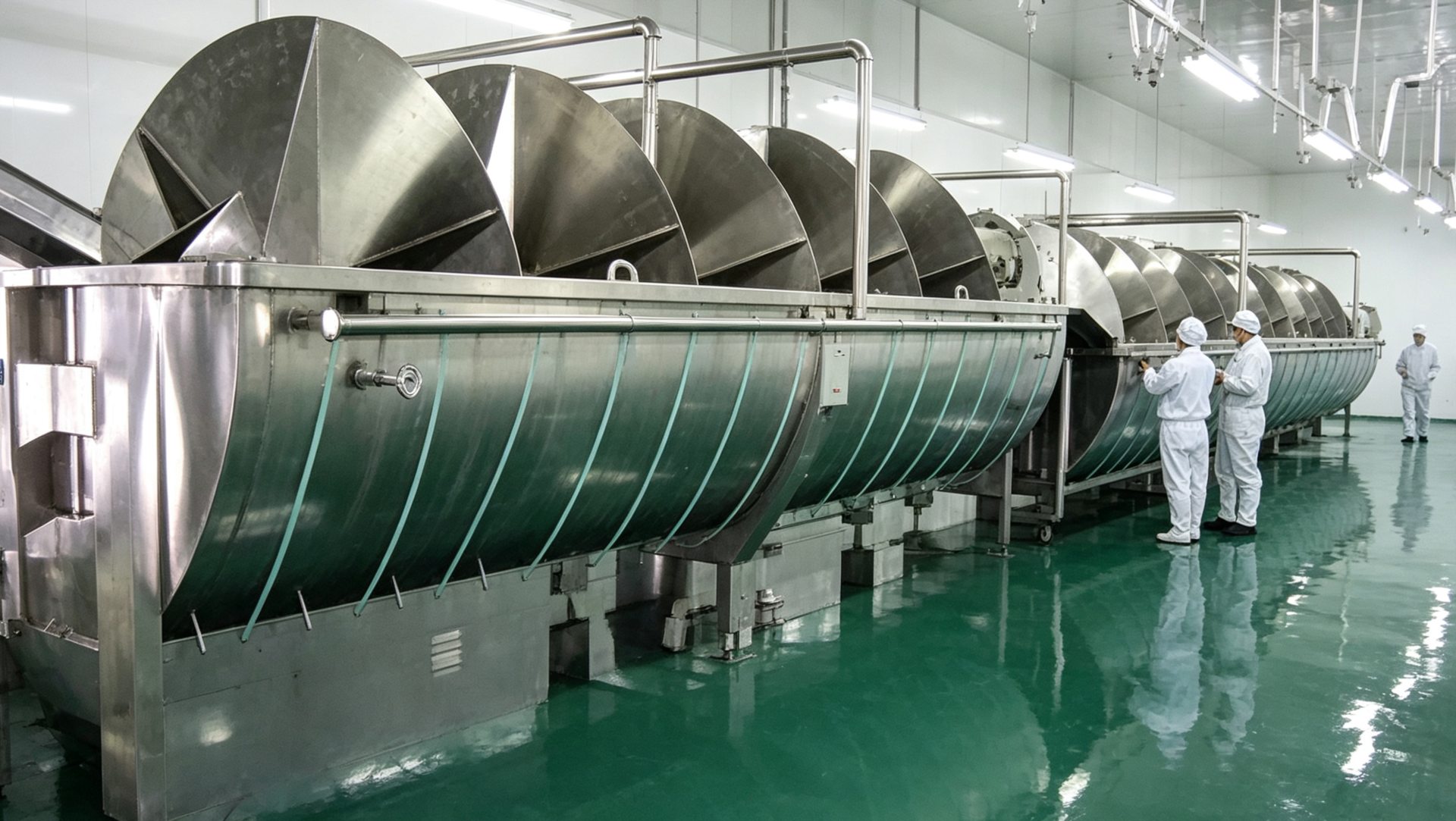

Application Photos
