Meal Cooler

CB meal cooler adopts the counter-current air cooling principle, allowing high-temperature materials and ambient air to fully heat exchanging in counter flow within closed casing. The low-speed paddle structure drives the material to turn gently, effectively avoiding excessive breakage and oxidation of the powder, enabling the fishmeal to cool rapidly to a suitable temperature for packaging and storage, reducing the risk of condensation and re-dampening, and maintaining stable product quality. The closed design simultaneously reduces dust leakage, ensures a safe production environment, and comprehensively improves the stability and batch consistency of the finished product quality.

鲑鳟鱼类初加工系统
  • +

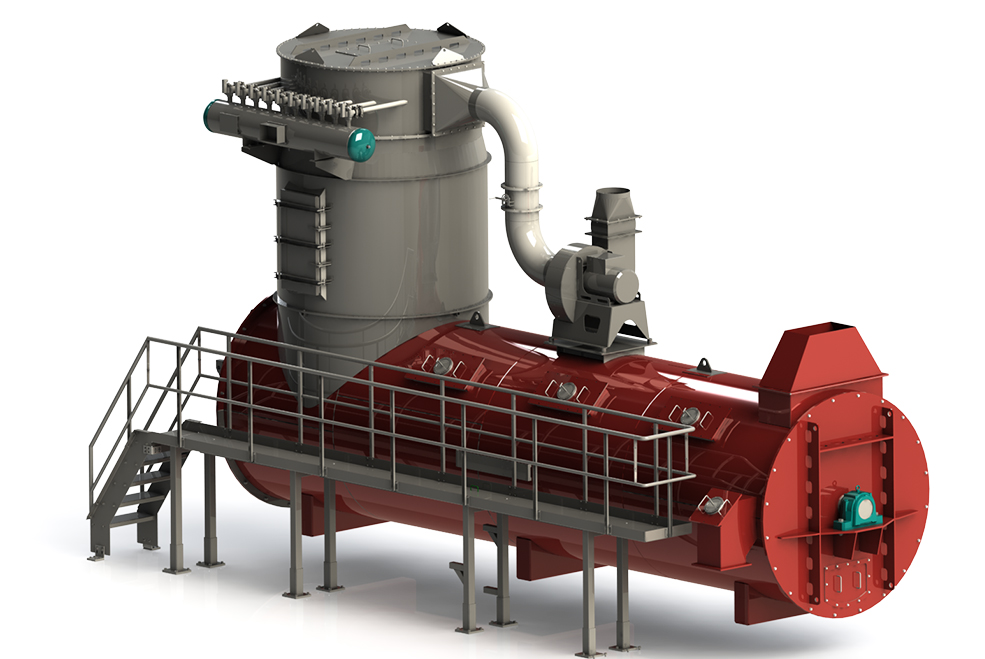

    Equipment Base
  • +
    Material Inlet
  • +
    Drive End Assembly
  • +
    Air Inlet
  • +
    Air Outlet
  • +
    Cylinder

Product Features

Counter-current air cooling, significantly improving heat exchange efficiency.
Continuous paddle agitation and conveying to ensure uniform material cooling.
Low-speed operation to reduce powder breakage rate and mechanical wear of equipment.
Robust and simple structure with fewer wear parts.
Suitable for variety of powder products.

Product Advantages

High cooling efficiency.
Strong quality stability.
Simple structure.
Simple operation.
  • 冷粉机结构图.jpg

选您的型号

Product Specification:


Model Processing Capacity (kg) Volume (L) Power (kw) Rotating Speed (rpm)
BMMC-1207 1500 7900 11 24
BMMC -1407 2500 10700 15 24
BMMC -1608 3500 16000 18 24
BMMC -2008 4000 24800 22 21
BMMC -2009 5000 27000 30 21
BMMC -2012 7000 37200 37 21
BMMC -3010 10000 70000 45 17
BMMC -3012 85000 85000 55 17

选您的型号

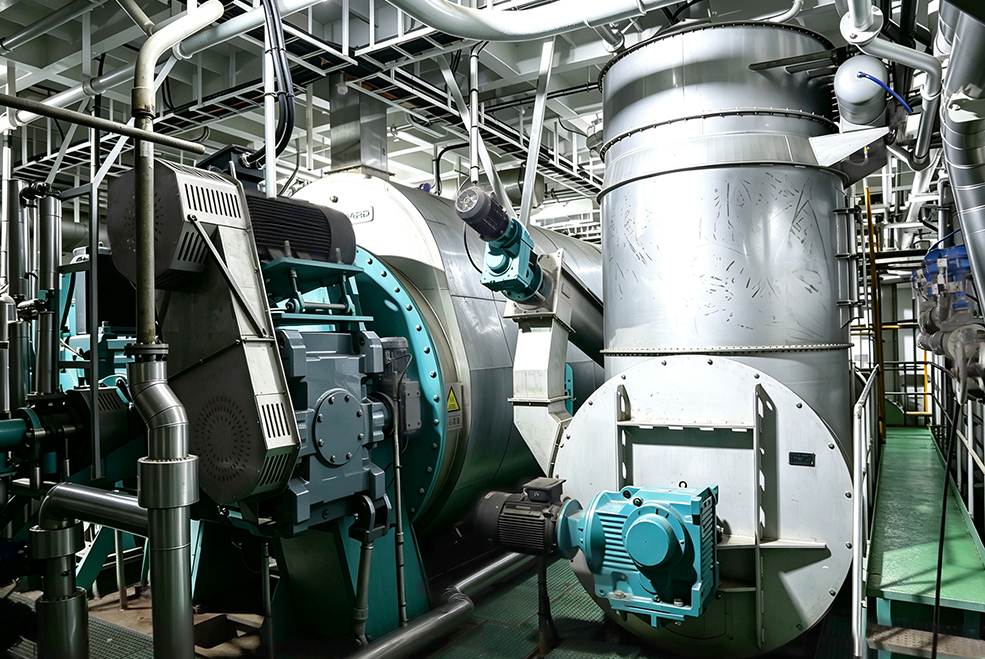

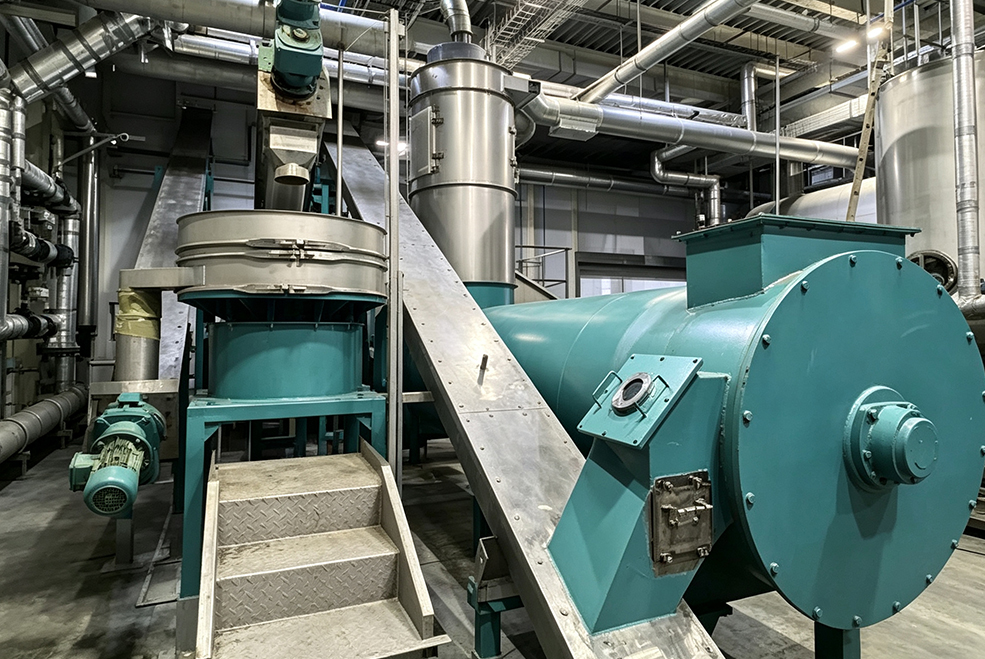

Application Photos
