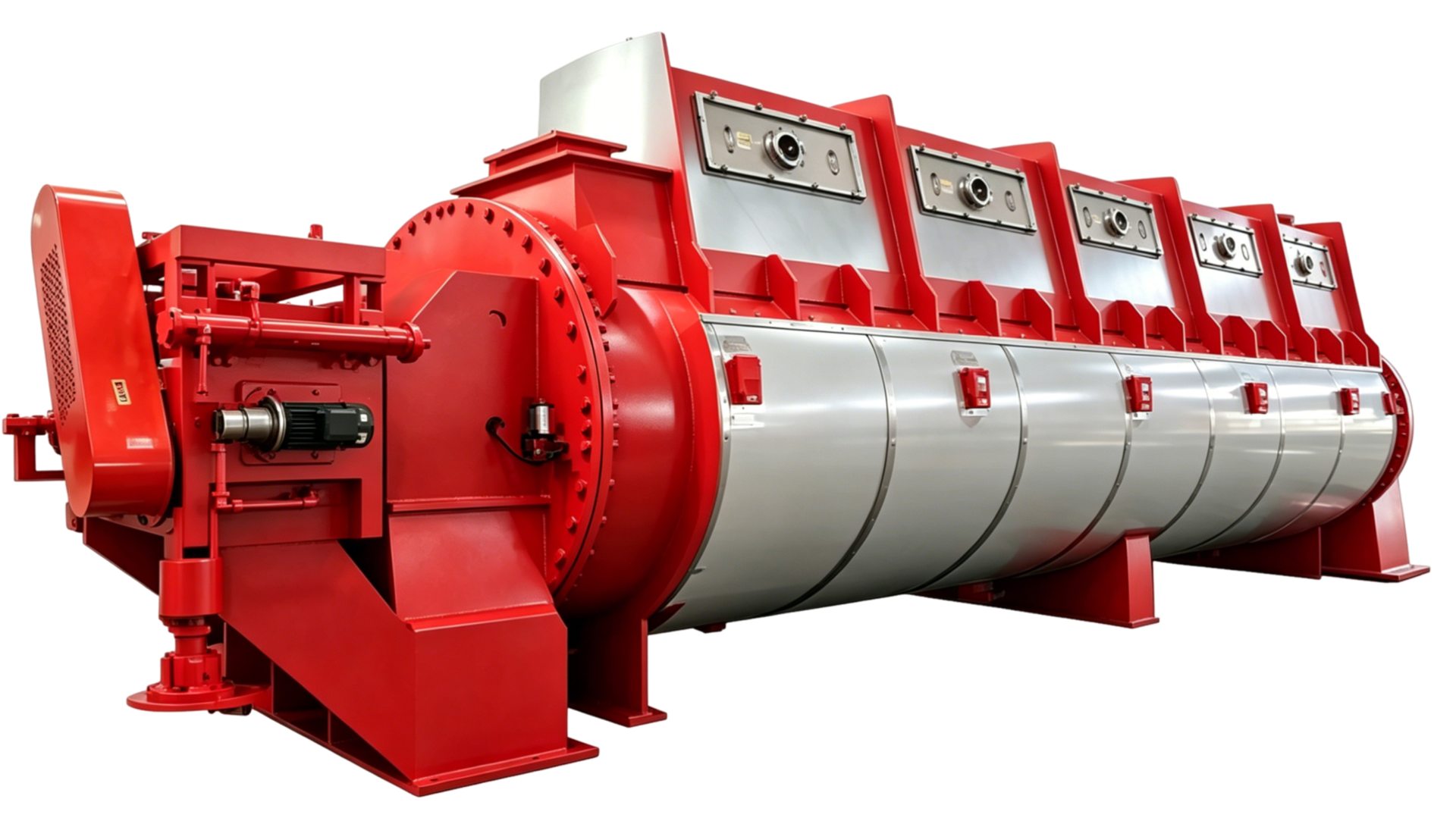

Disc Dryer

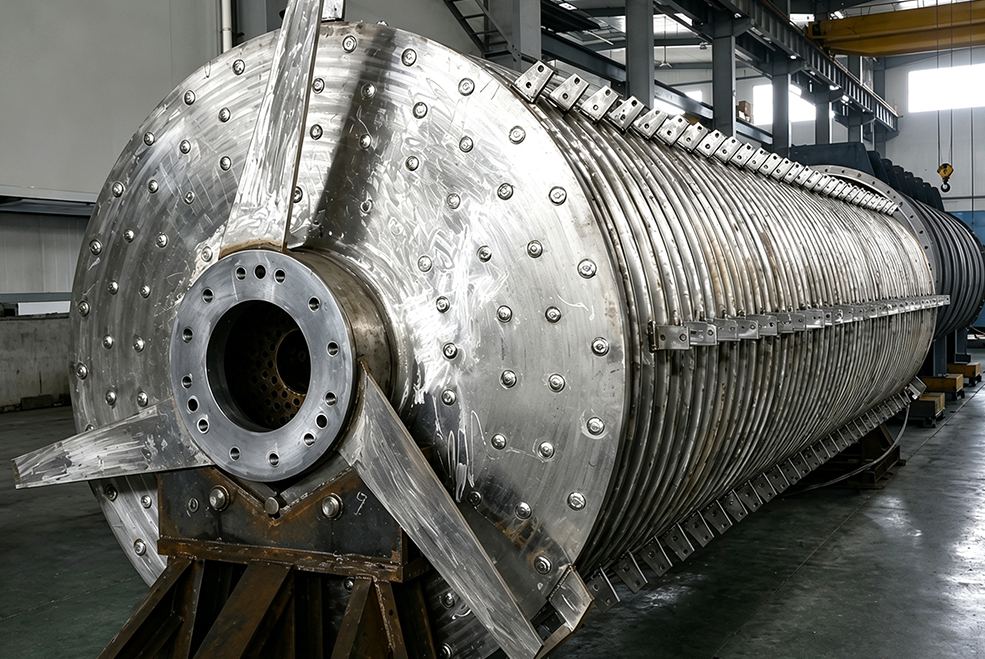

CB disc dryer utilizes a dual indirect steam heat exchange structure comprising a shell jacket and rotor discs. Steam is evenly distributed to each heating disc through the interior of the rotating shaft, featuring a compact design and high evaporation capacity. Designed for continuous production, the disc dryer propels material through the chamber at a low speed, ensuring gentle and uniform heating. This significantly reduces the probability of thermal damage to proteins and clumping, leading to a notable improvement in product quality. Depending on specific capacity requirements and material characteristics, the heating area and materials can be configured to achieve a stable, energy-efficient, and controllable drying process.

鲑鳟鱼类初加工系统
  • +

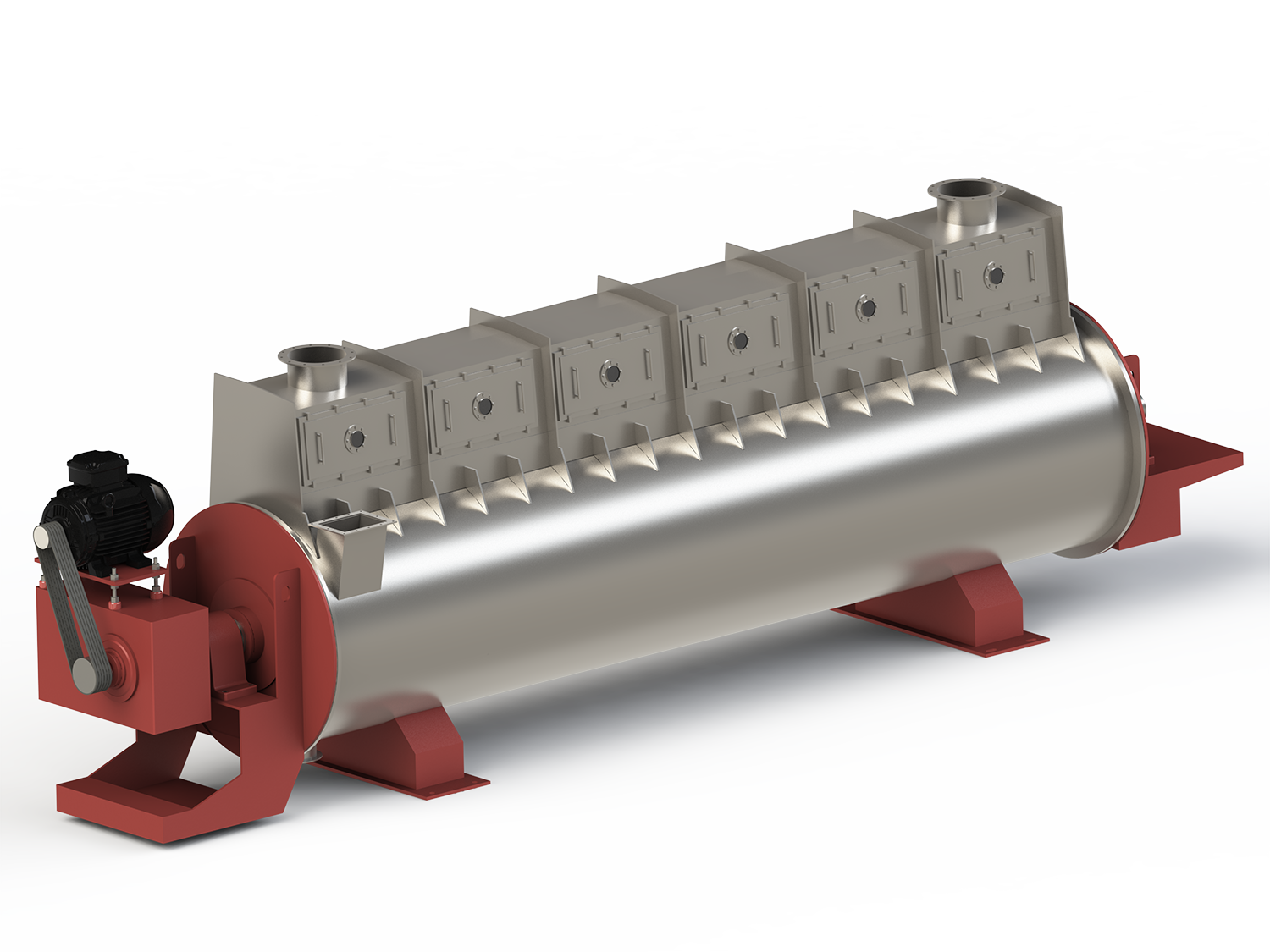

    Support Base
  • +
    Gearbox
  • +
    Drive Motor
  • +
    Exhaust Outlet
  • +
    Inspection Port
  • +
    Inlet
  • +
    Dryer Cylinder

Product Features

Steam enters each heating disc evenly, ensuring stable temperature.
Low-speed continuous drying meets the requirements for complex material drying.
Adjustable feeding structure realizes uniform and stable material conveyance.
Compact structure with high area heat exchange capacity.
Available in materials such as carbon steel, 304, 316L, and duplex stainless steel to adapt to different corrosive conditions.

Product Advantages

Excellent drying quality.
High heat exchange efficiency.
Strong production continuity.
Low maintenance cost.
Outstanding environmental performance.
Wide adaptability to working conditions.
Excellent integration capability.

产品参数

Product Specification:


Model Heating Area Steam Pressure Rotating Speed Motor Power
BMDD-1228 60 ≤1.0 Mpa 1-10 rpm 30
BMDD -1242 90 45
BMDD -1537 110 45
BMDD -1551 150 55
BMDD -1850 215 75
BMDD -2050 260 75
BMDD -2064 320 90
BMDD -2264 375 110
BMDD -2550 400 110
BMDD -2564 515 132
BMDD -2578 595 160
BMDD -2864 650 160
BMDD -2878 730 200

选您的型号

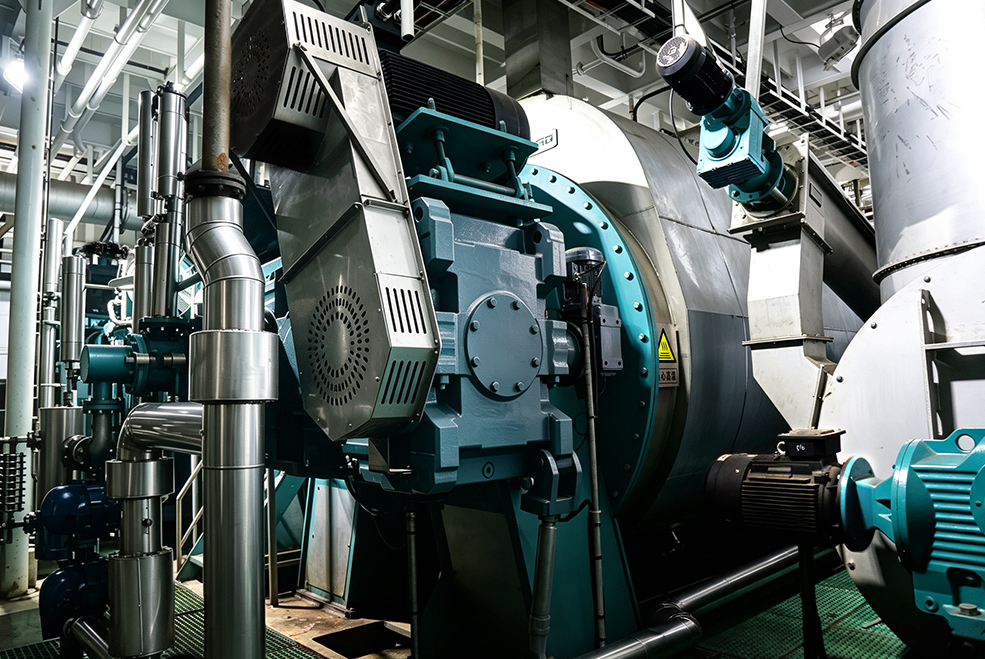

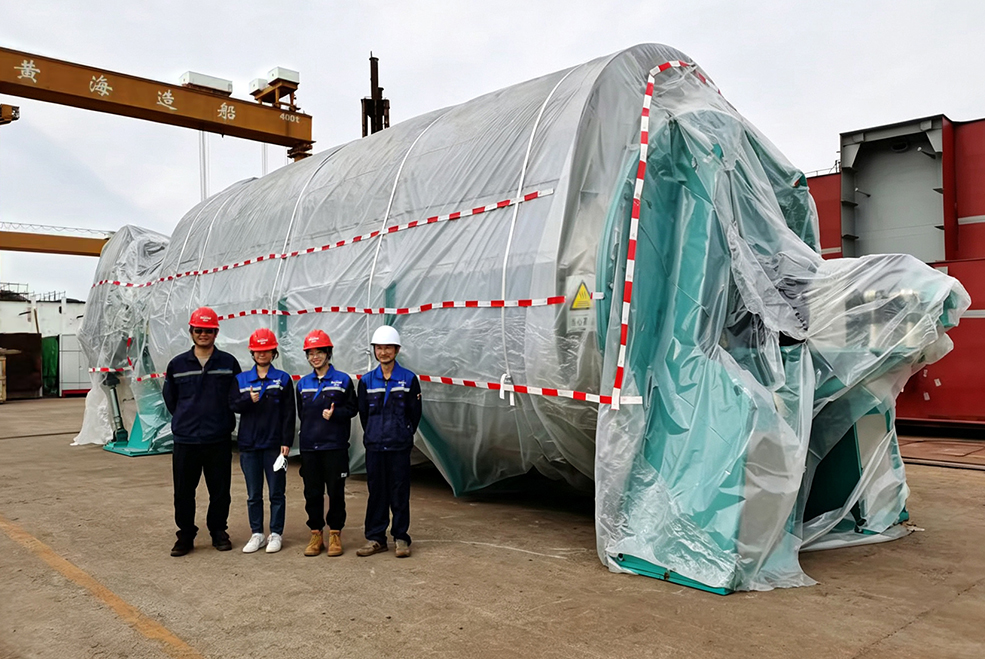

Application Photos
