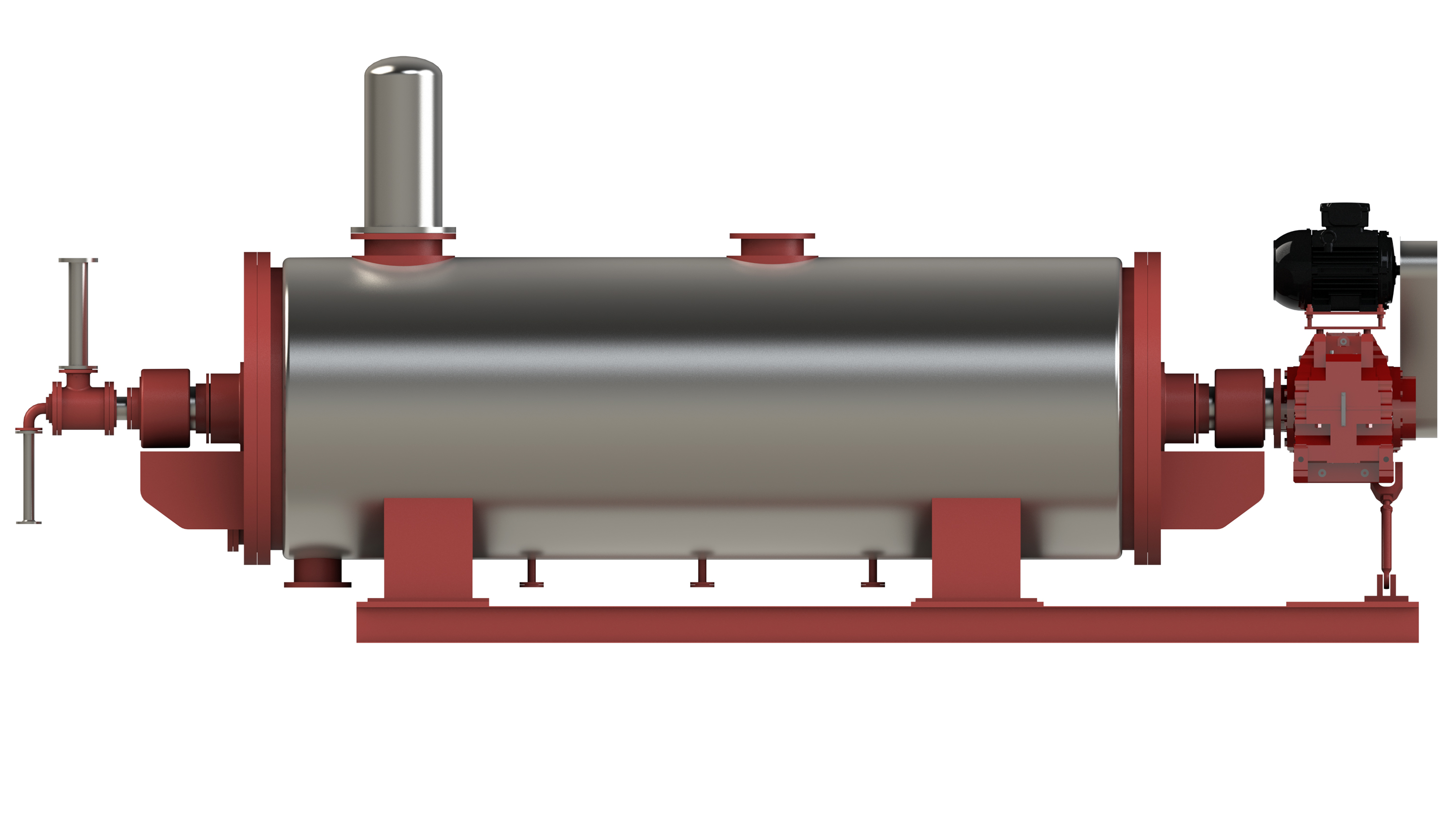

Batch Cooker
CB Batch Cooker is specifically designed for poultry by-product rendering, integrating cooking, sterilization, hydrolysis, and drying into one unit. It is suitable for various of raw materials, including poultry offal, carcasses, and wet feathers. Through dual steam heating via the jacket and central rotor, combined with precise control of temperature, pressure, and processing time, the system ensures uniform heat transfer and stable processing, enhancing fat recovery efficiency and overall resource utilization. It provides a safe, efficient, and reliable cooking solution for modern poultry rendering plants.
-

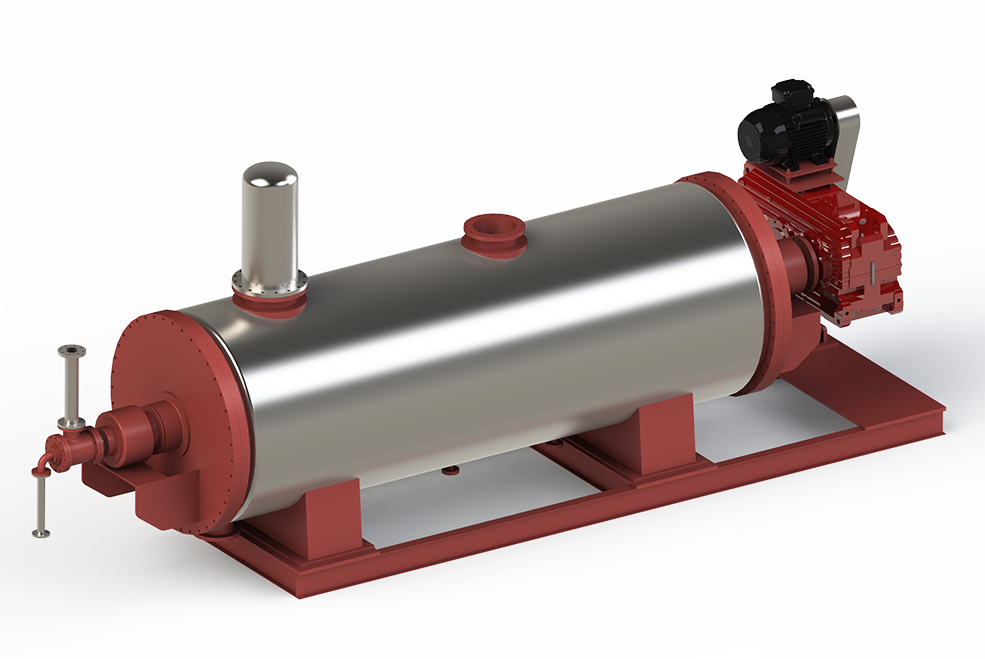

+Motor
-
+Gear Reducer
-
+Coupling
-
+Equipment Base
-
+Cooking Chamber
-
+Condensate Outlet
-
+Steam Inlet
-
+Exhaust Vent
-
+Feed Inlet
Product Features
Dual steam heating through the jacket and central rotor ensures uniform heat distribution. Simple and robust design, with key components manufactured from wear-resistant and corrosion-resistant materials. Fully enclosed structure effectively controls odor emission and steam leakage. Equipped with monitoring system for temperature, pressure, weight, and operating status, enabling automatic control and safety interlocking protection. Cooking temperature, pressure, and processing time can be flexibly adjusted according to different raw material characteristics. An automatic condensate recovery system collects steam condensate and returns it to the boiler, reducing energy consumption.
Product Advantages
Integrated cooking and drying functions simplify the process and provide strong adaptability to various raw materials. Dual-layer jacket heat transfer design improves heating efficiency and production capacity. Automated feeding and discharge control enables easy operation and stable performance. Steam condensate recovery reduces energy consumption and operating costs. A wide operating pressure range allows processing of various types of raw materials.
选您的型号
Product Specification:
|
Model |
Loading Volume (L) | Motor Power (kw) | Equipment Weight (t) |
| BMBC-2000 | 1200 | 11 | 7 |
| BMBC-3500 | 2200 | 22 | 12 |
| BMBC-6000 | 3500 | 37 | 16 |
| BMBC-8500 | 5500 | 55 | 25 |
| BMBC-10000 | 6500 | 75 | 30 |
| BMBC-12500 | 8000 | 90 | 35 |
| BMBC-16000 | 9800 | 110 | 40 |
| BMBC-18000 | 11000 | 132 | 45 |
选您的型号

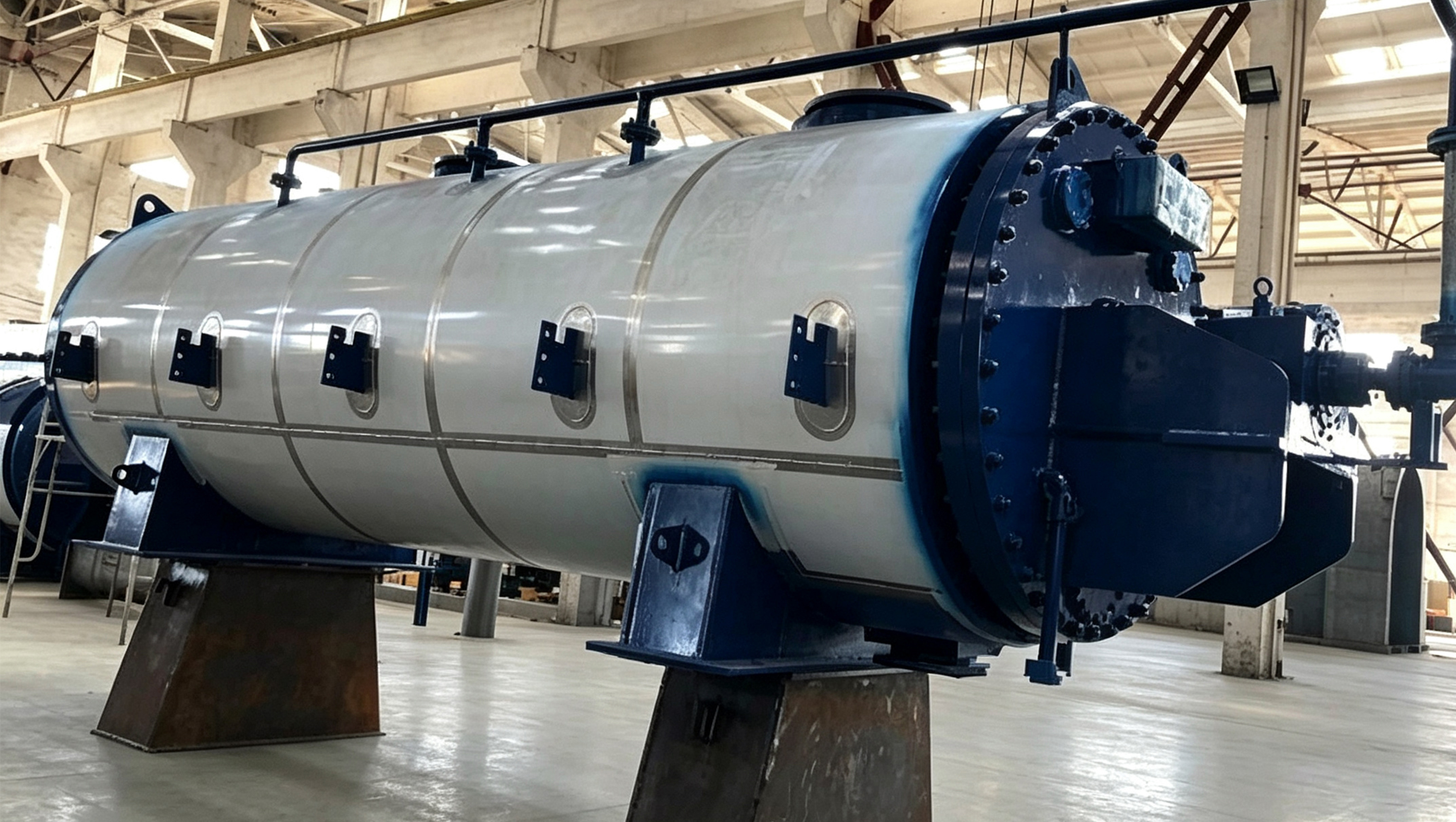

Application Photos
Application
