Tray Washer Bpwt-150D

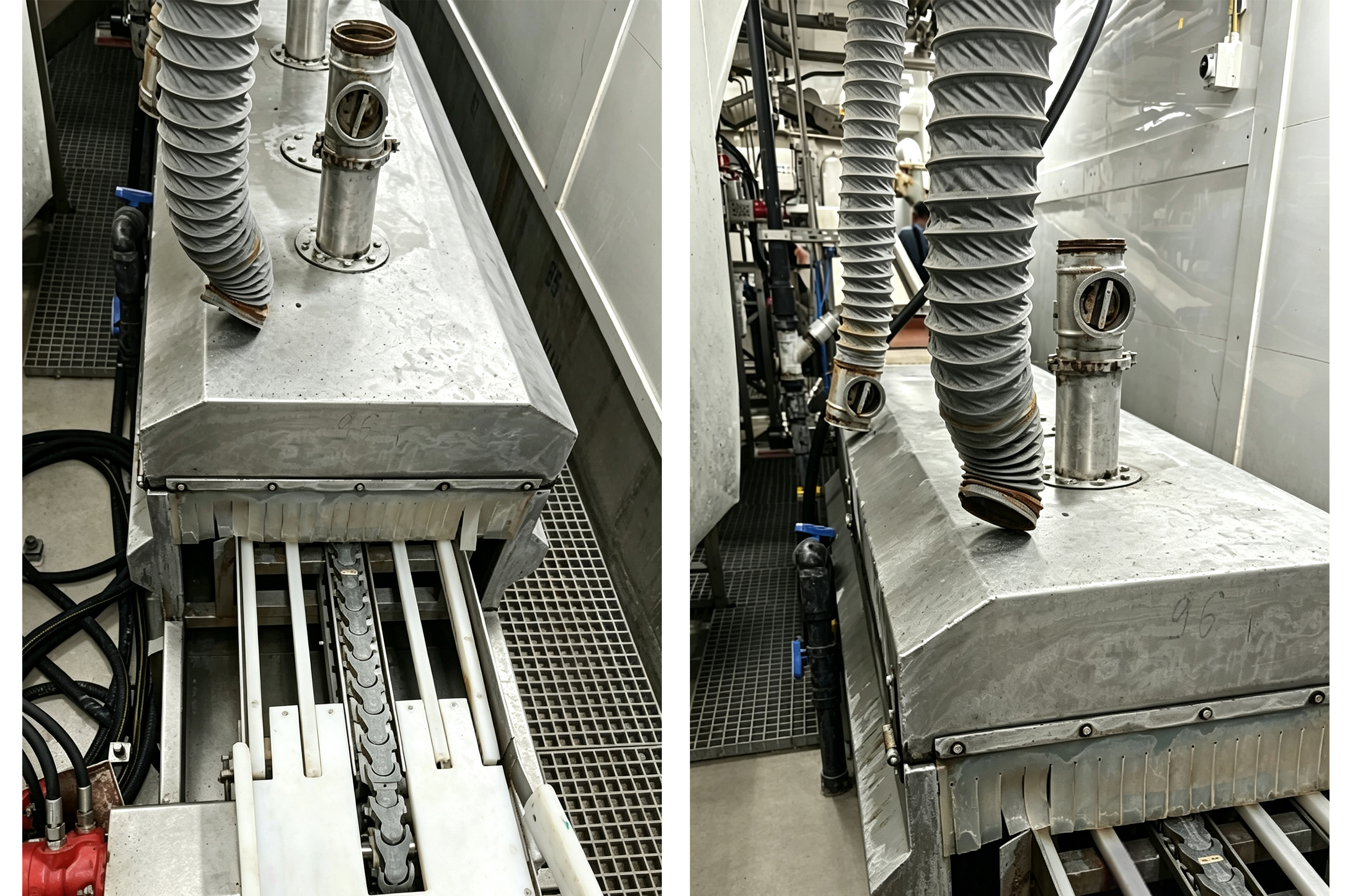

CB tray washer BPWT-150D addresses drawbacks of manual tray cleaning: heavy labor, inconsistent cleaning results and low circulation efficiency.It features a tunnel continuous spray structure with chain conveyor transporting empty trays. Adjustable side guides align tray’s dimension. Trays pass through a sealed chamber for full-coverage & high-pressure spray cleaning, completing conveying and washing in one step.
Split modular enables compatibility with upstream & downstream conveyors for fully closed-loop automated lines. Fully enclosed chamber with inspection window prevents water splashing. All core components are 316L stainless steel for seawater resistance, complying with global food hygiene standards. Fitted with high-pressure pumps for stable continuous automatic operation to standardize tray cleaning with high efficiency.
-
+Support frame
-
+Tray
-
+Adjusting rod
-
+Protective cover
-
+High pressure water pump
-
+Multiflex chain conveyor
Product Features
Key parts made of 316L stainless steel, resistant to long-term seawater erosion for extended service life under onboard vessel environments. Continuous tunnel washing delivers all-over spray without blind zones to ensure uniform cleanliness across all trays. Adjustable side limit rods to change channel width, compatible with tray’s size. Conveyor width & length customizable to match client’s existing tray specs. Integrated fully enclosed chamber protects electrical and conveying equipment from water. Accessible inspection window allows internal check during operation. Matched with standard BPCH multiflex chain conveyors for stable conveying without stuck, easy integration into full production automation.
Product Advantages
150 bar high-pressure full-surface spray eliminates uneven cleaning quality from manual washing. Corrosion-resistant design works reliably for both onshore plants and onboard fishing vessels. Customizable with limitation adjustment, tray dimensions and pump parameters to fit all freezing trays. Splash-proof enclosed chamber with inspection window improves on-site operation safety. Continuous tunnel washing for seamless integration into automated lines. Fully automatic running, few wearing parts, easy disassembly & maintenance to reduce long-term operational costs.
Product Specification
| Power Supply (V/Phase/Hz) | 380V / 3Ph / 50Hz |
| Water Usage (L/min) | 15 |
| Pump*1 | 150 Bar，15 L/min，4 kW |
| Conveyor | L=1500 mm，W=500 mm，0.25 kW |
| Rated Capacity*3 (tray/min) | 10 |
| Tray Width Range*4 (mm) | 260-350 |
* 1.Pump models & specifications customizable per client requirements.
* 2.Conveyor width matched to customer tray dimensions.
* 3.Rated capacity varies with conveyor speed.
* 4.The tray width range corresponds to this standard conveyor width.
