Block Ejector BPBE Series
CB semi-automatic block ejector resolves safety risks, heavy labor and high frozen block damage from manual operation, suitable for onshore processing plants and onboard process trawlers.

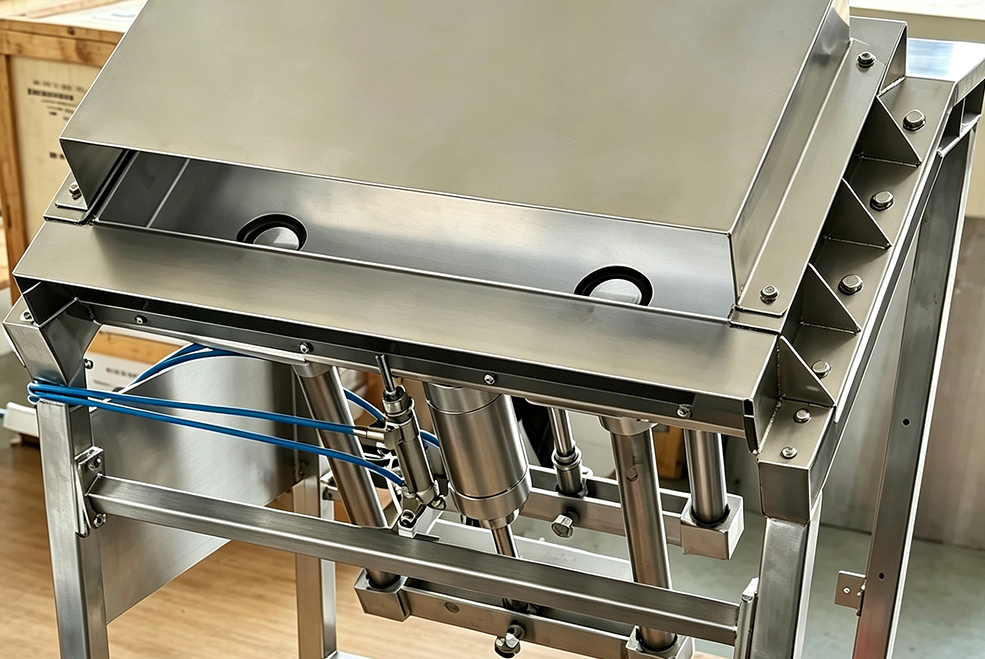

It adopts pneumatic cushioned push rod ejection with precise mechanical tray locking. Frozen blocks slide to output conveyor by gravity after ejection, while retractable baffles separate empty trays and blocks via dual automatic discharge outputs.
The compact unit only requires manual tray loading，fully automatic ejecting & diversion operation with one button. All parts are 316L stainless steel with saltwater resistant and washable to meet global food hygiene standards. It can run stand alone or links plate freezers and packaging conveyors for full-line automation.
-
+Control cabinet
-
+Retractable baffle
-
+Limitation assy.
-
+Ejecting cylinder assy.
-
+Support frame
Product Features
Pneumatic push rods with flexible cushion pads deliver even pushing, achieving damage-free separation without block breakage & deformation. Dual independent diversion channels: separate routes for frozen blocks and empty trays for non-stop feeding without interference. Product in 316L stainless steel for superior saltwater corrosion resistance and extended service life. Mini integrated design fits narrow onboard space，easy disassembly & relocation, plug-and-play once air supply is connected. Customizable tray dimensions to match clients’ existing freezer tray specifications. Simple one-touch control: one click completes full cycle once tray is in place, minimal operator training required.
Product Advantages
Soft buffered ejection reduces product loss and maintains intact frozen block appearance. 316l stainless steel structure delivers stable long-term operation for coastal plants and onboard fishing vessels Small footprint allows flexible layout in cramped spaces with quick installation. Eliminates manual forcing blocks out to avoid cut and crush damage; only one operator needed for continuous feeding. Intuitive one-button automation, fast learning for staff. Pneumatic structure with minimal wearing parts for easy cleaning and maintenance, supporting long term continuous production. Flexible configuration: stand-alone use or paired with conveyors to integrate plate freezing and automatic packaging.
Product Specification
| Air Pressure (bar) | 6 |
| Air Usage (L/min) | 62.8 |
| Performance |
| Rated Capacity (tray/min) | 10 |
| Push Rod Stroke (mm) | 75 |
| Applicable Tray Size*1 (mm) | 517 x 287 x 61 |
| Air Pressure (bar) | 6 |
| Air Usage (L/min) | 119 |
| Performance |
| Rated Capacity (tray/min) | 10 |
| Push Rod Stroke (mm) | 75 |
| Applicable Tray Size*1 (mm) | 638 x 347 x 67 |
* All tray sizes are customizable to fit various freezer tray bases per client demands.
