Integrated Feeding System
CB brings high-standard pneumatic conveying technology to the open marine. Based on the growth cycle of different fish species and cage scale, the system adopts soft airflow to deliver pelleted feed gently. Replacing intensive manual labor with an automatic control system, it enables precision feeding across multiple cages.
The system drastically reduces feed pellet attrition inside pipelines, and excess sedimentation. It improves fish welfare and safeguards the aquatic ecosystem.
CB Integrates different technologies and practical experience in accordance with client requirements, this all-in-one feeding system features superior system integration and scalability. It can be seamlessly expanded and incorporated into various large-scale offshore fish cages and platforms.
-

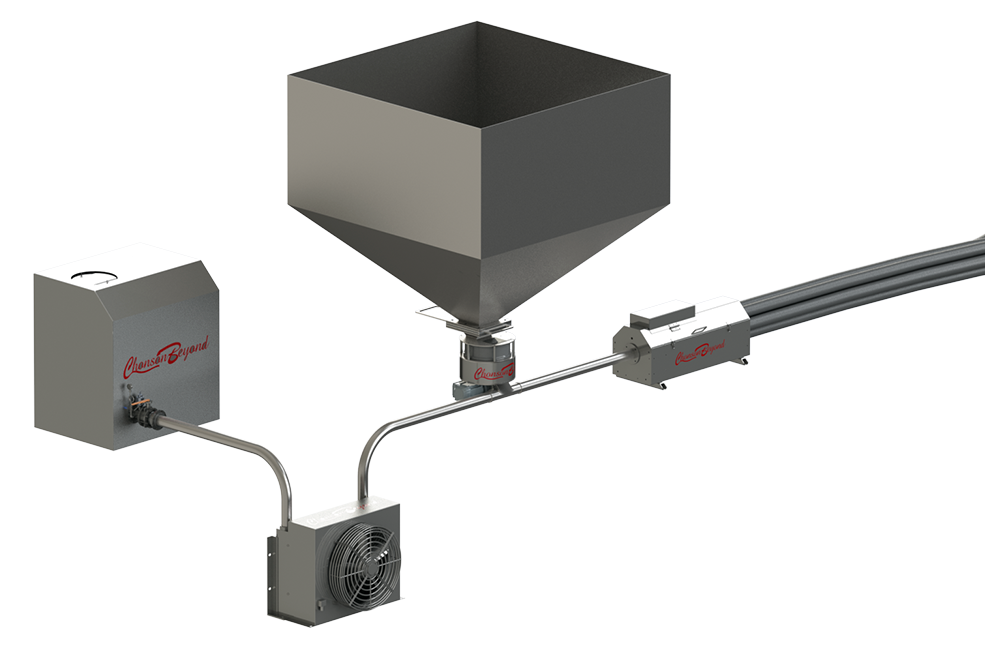

+Control System
-
+Silo (Can be expanded)
-
+Selector
-
+Rotary Valve
-
+Auger
-
+Cooler
-
+Roots Blower
Product Features

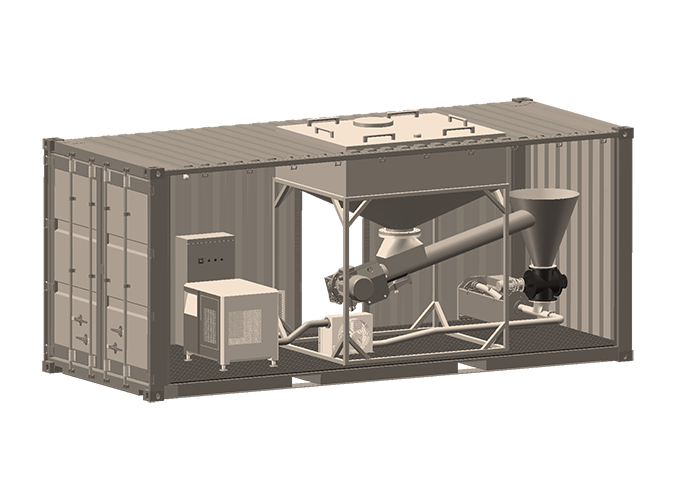

Adopts high-standard pneumatic conveying structure with soft airflow, with optimized pneumatic duct design Equipped with automatic control system to support linked feeding for multiple cages Fitted with VFD controlled Roots blowers Blower outlet equipped with coolers, air-cooled or water-cooled types optional Built-in pressure protection module for the system The complete system is containerized integrated Modular expandable design allowing additional feeding branch pipelines Supports local operation in control room + remote device monitoring
Product Advantages
Extremely low feed attrition rate and minimal feed sediment. Reduces feed consumption, improves living conditions for fish and protects marine ecological environment. Automatic switch feeding across multiple cages, enables scientific & quantitative feeding, cutting manual labor intensity and improving aquaculture efficiency. Stable equipment operation with low failure rate, offering reliable support for farming activities. Containerized integrated skid greatly reduces on-site construction and installation work, shortens project span and reduces costs. Expandable feeding branches, no need overall reconstruction for future expansion; flexible upgrade to match growing production scale. Reduce energy consumption, resulting in reduced long-term electricity operating costs. User-friendly operation & maintenance with easy equipment servicing.
选您的型号
Product Specification:
| Silo Volume (m³) | 2.1 (can be expanded) | Feeding Distance (m) | 300-500 |
| Power consumption (kW) | 7.5 - 30(Subject to site condition) | Branches | 6-60(Subject to site conditions) |
| Allowable Pellet Size(mm) | 1-12 | Outline Dimension | Standard 20 feet container |
| Feeding Ability (t/h) | 0.06-3.6 | Piping Outer Dia.(mm) | 32 / 63 / 90 |
| Accuracy | 1.50% | Piping Inner Dia.(mm) | 25 / 50 / 76 |
